JACK H2-A-CZ WALKING FOOT MACHINE COMPLETE
Why Buy from Us?
- You are dealing with the official Jack UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements
Description / JACK H2-A-CZ WALKING FOOT MACHINE COMPLETE
Jack H2-CZ
Basic Direct Drive Top Feed Lockstitch Machine
1-needle lockstitch machine designed for sewing thicker materials (e.g. leather, upholstery materials), equipped with an energy-saving motor built directly into the machine head (Direct Drive system). This solution guarantees quiet operation and low electricity consumption. The machine also has a needle positioning function. Double transport (lower teeth and upper – rolling foot) ensures perfect movement of the upper and lower layers of stapled materials. The machine has a clear operating panel built into the head and LED backlight at the needle bar.

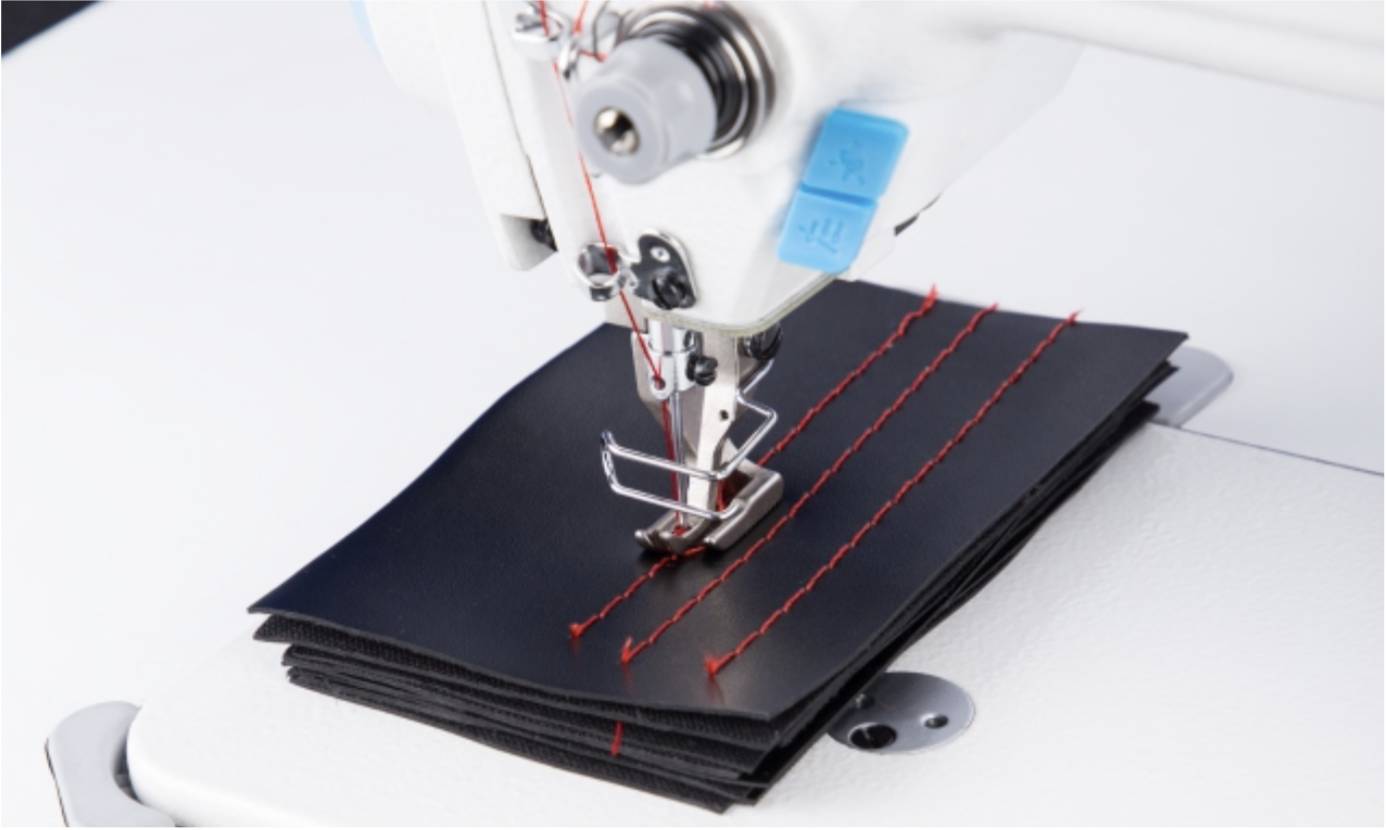

For Heavy Materials
Top feed, 750W motor, extremely durable for heavy materials, sews 10 layers of medium-light leather with great results.

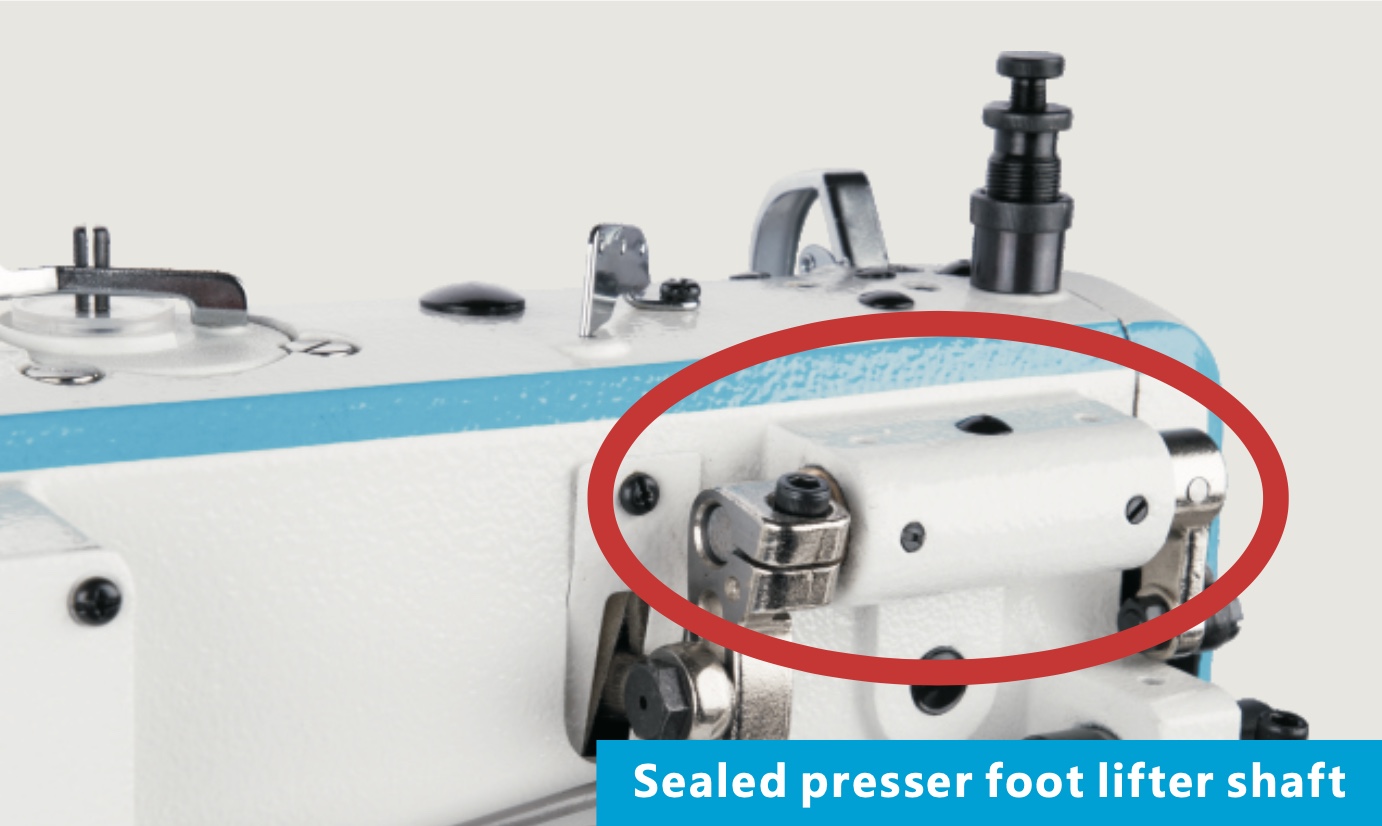

Sealed Presser Foot Bar
Solid grease lubrication that eliminates oil stain problems.

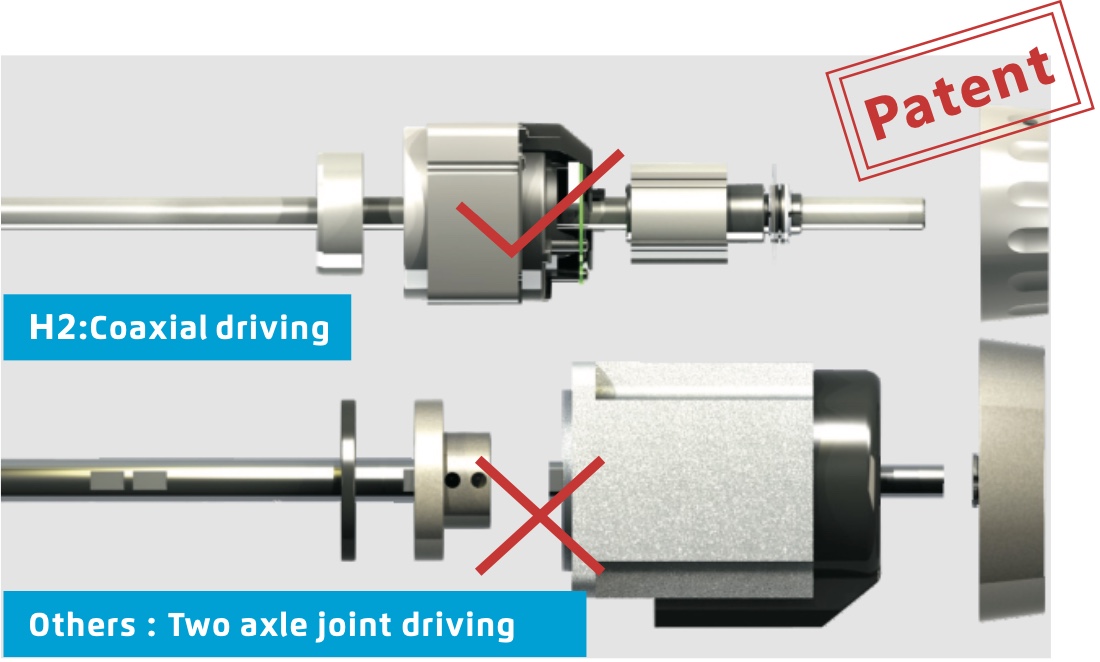

Direct Drive Coaxial Motor
Reduces energy loss, makes your machine fast, stable, durable and quiet.

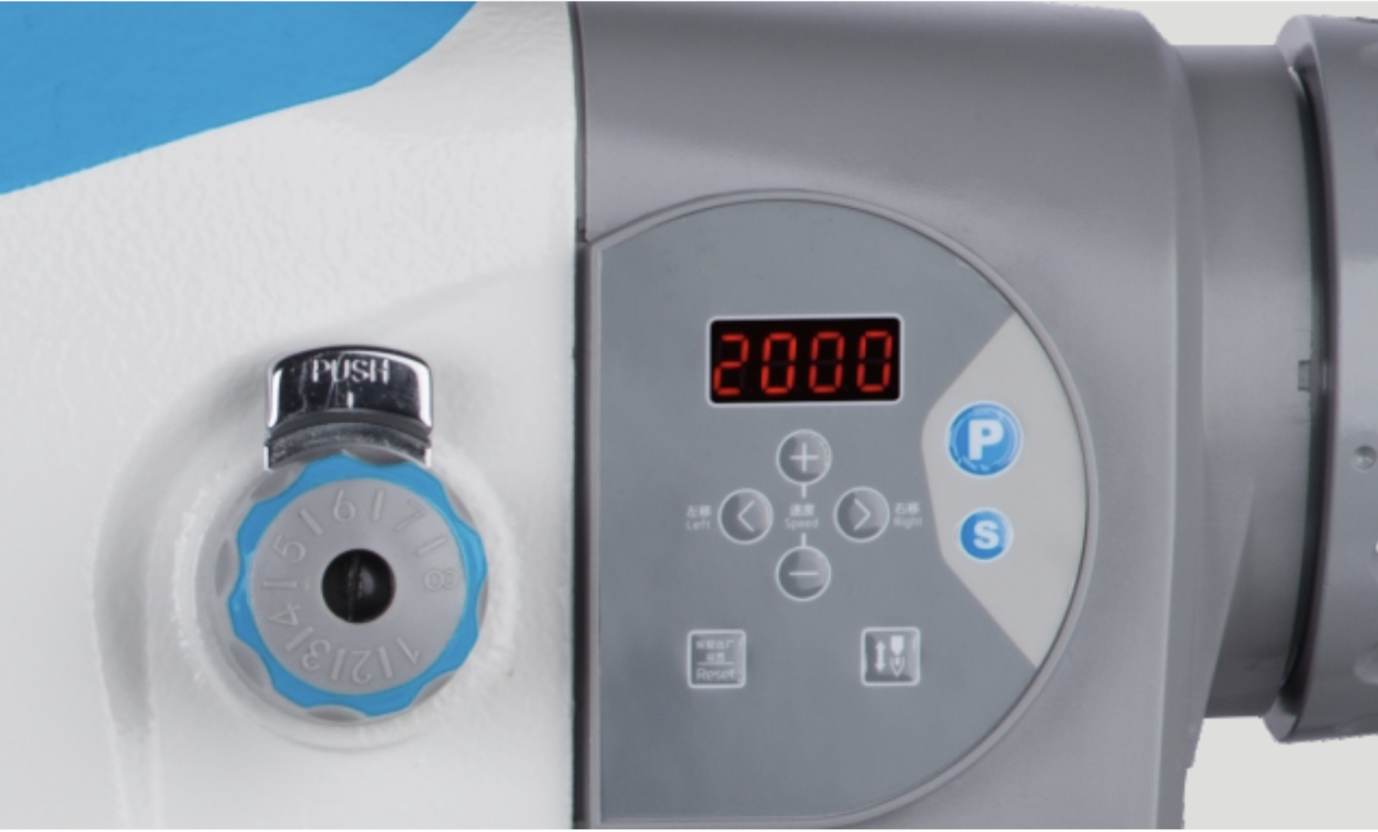

Easy To Use Panel
Control of simple functions and button for factory reset

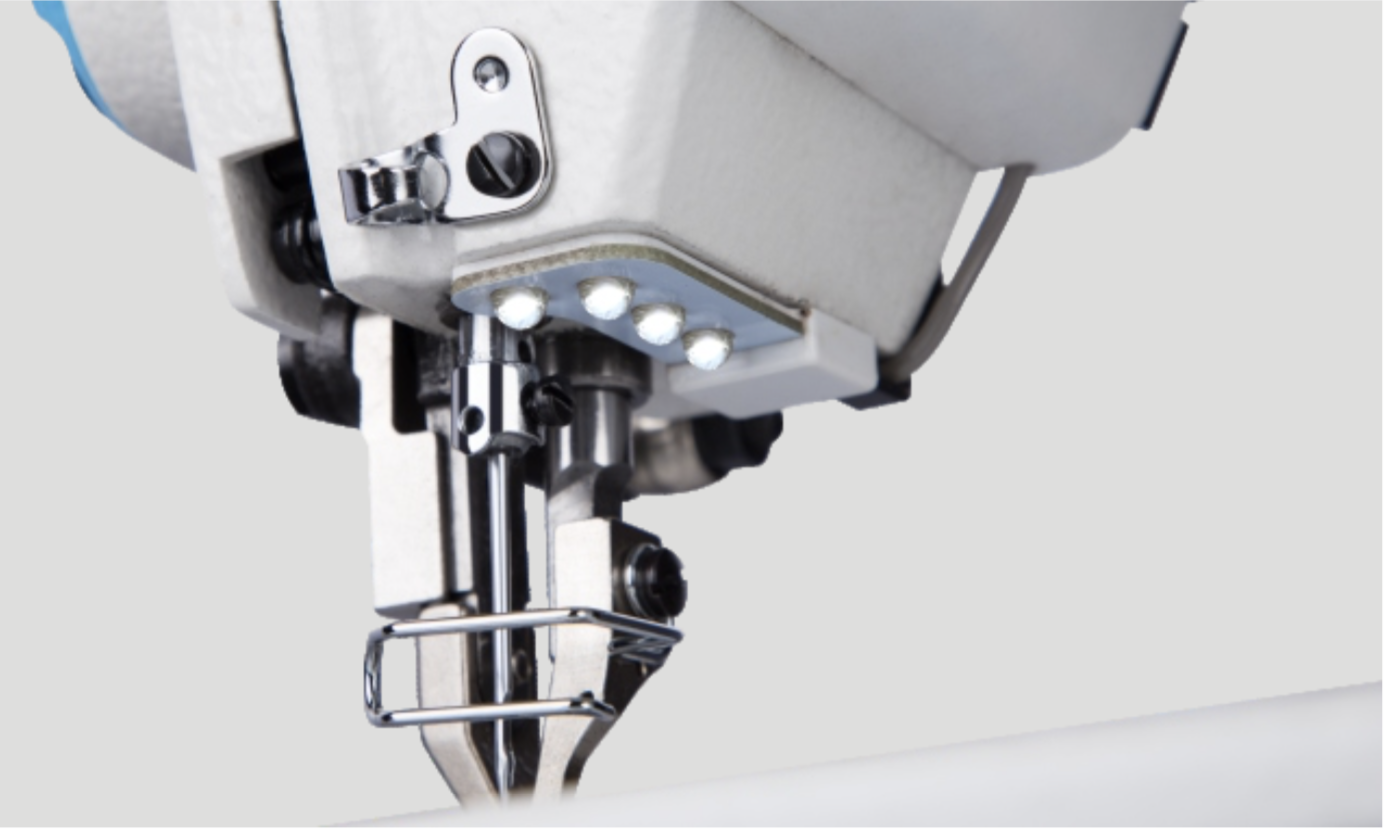

LED Light
Equipped with 3 levels of LED lighting, it offers clear visibility, allowing greater comfort in processing and avoiding eye strain

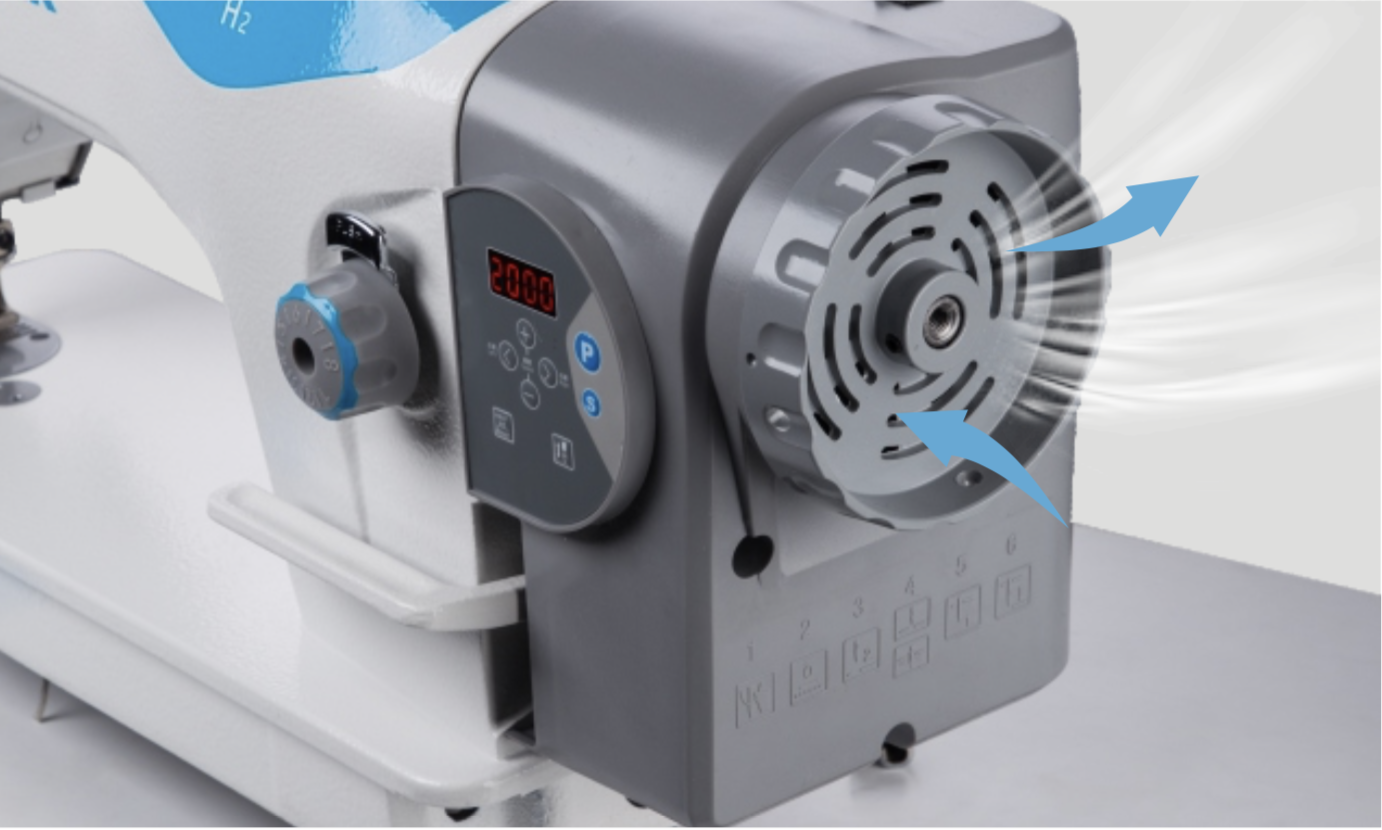

Cooling Fan
Handwheel with cooling system, to reduce the engine temperature. Electronic control that increases the strength and durability of the components.
Technical Specifications
| Model | Jack H2-CZ |
|---|---|
| Application | Normal Material |
| Needle | DPx17 20-23# |
| Threads | 2 |
| Presser Foot Lifting Height (mm)/th> | 7.5-16 |
| Max Sewing Speed (S.P.M) | 2200 |
| Volume (mm) | 725x285x580 |
| Weight (KG) | 40.5/43 |
More Information
| Part No | JACKH2CZ |
|---|---|
| Weight (KG) | 74.000000 |
| Manufacturer | Jack |
