JACK JK-1530D-CQ DIRECT DRIVE AUTOMATIC ZIG ZAG MACHINE
Why Buy from Us?
- You are dealing with the official Jack UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements
Description / JACK JK-1530D-CQ DIRECT DRIVE AUTOMATIC ZIG ZAG MACHINE
Jack JK-1530D-CQ

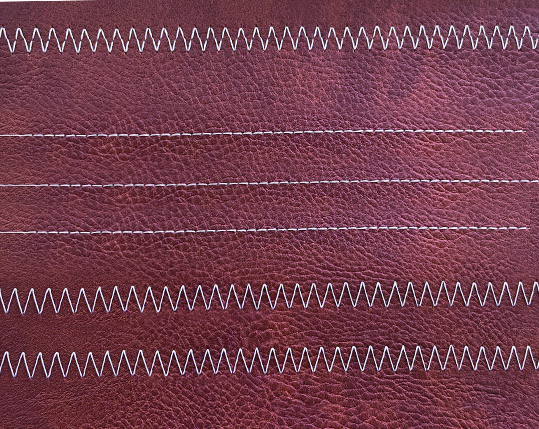

- Straight and Zig-Zag Stitch Sewing Machine
JACK JK-1530D-CQ is a versatile sewing machine known for its straight and zigzag stitching with automatic thread trimming and automatic bartacking. Equipped with an energy-saving motor mounted in the head (Direct Drive), which guarantees quiet and reliable operation and lower energy consumption.
JACK JK-1530D-CQ is a reliable choice for both professional workshops and home use looking for a machine that can effectively handle a wide range of sewing tasks. Easy switching of multiple sewing methods, suitable for sewing zigzag, straight stitch, leather products, shoes and hats, bags, thick material and other products.

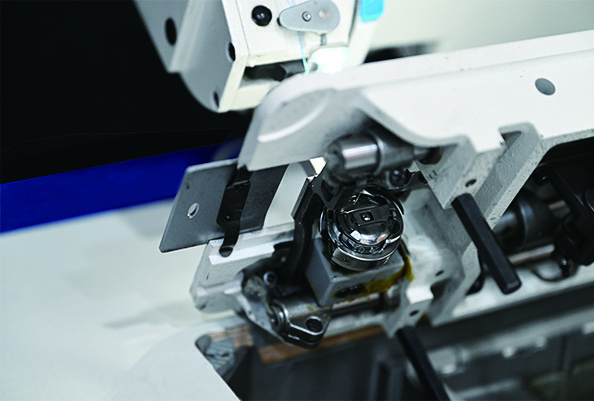

Stable Thead Cutting.
With new patented trimming technology, to ensure perfect and highly stable trimming.
Built-In Bobbin Winder.
Easy and effiecient built-in bobbin winder, eliminating the need to pre-wind bobbins.

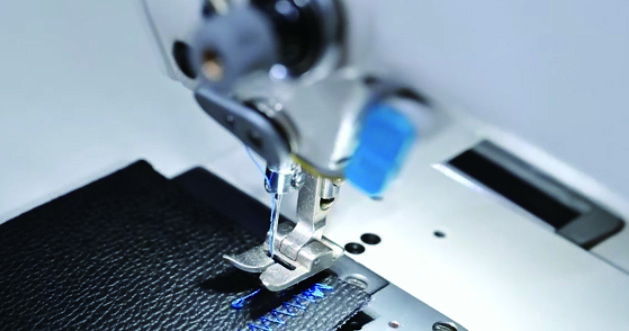

Easily switch between sewing modes.
Easily switch between many sewing modes, suitable for zig-zag stitching, striaght stitch sewing, multi-point zigzag pattern sewing, overlock sewing and so on of leather, shoes and hats, bags, thick cloth and other products

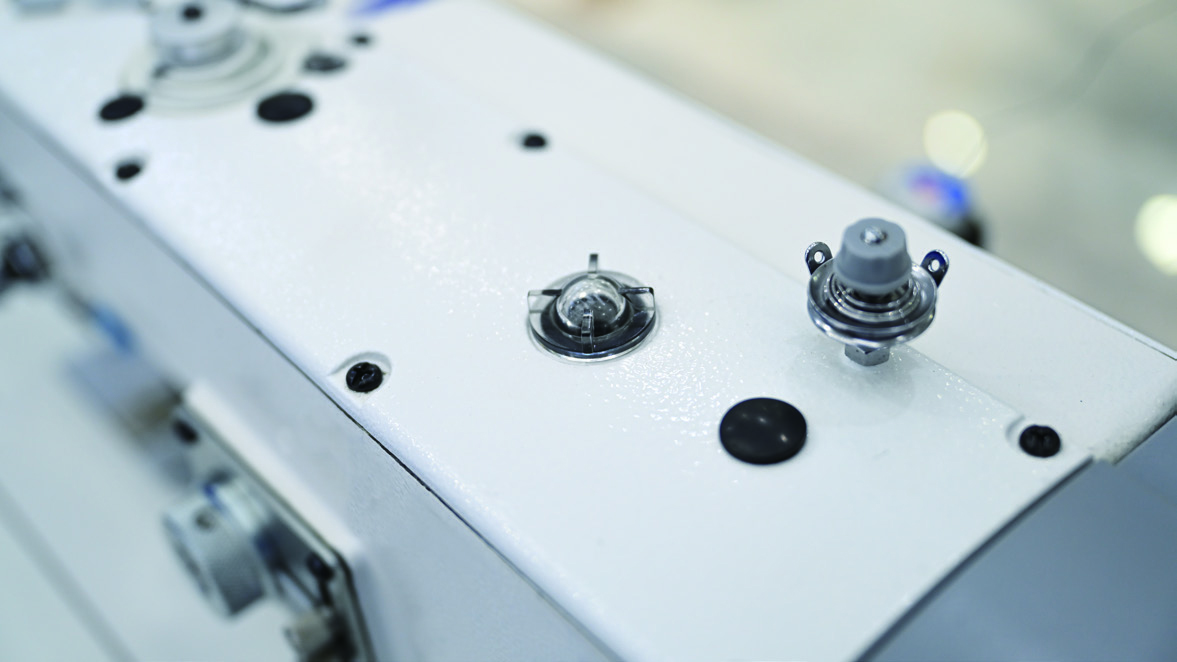

Automatic Oil Supply.
Continuous oilk supply during operation, ensuring the lubriction of he structural components, resulting in less noise.

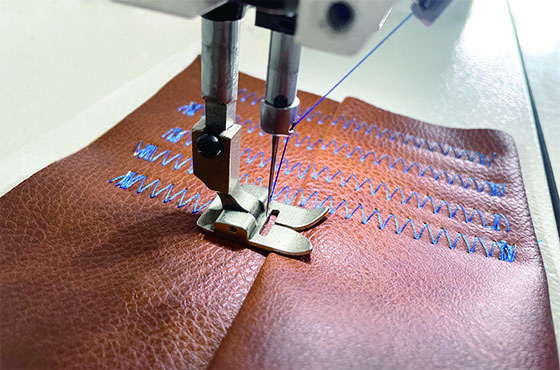

Large Hook.
The machine provided better sewing efficency with eth inclusion of a larger hook.
Multi-Brightness LED Light.
The integrated LED Light provides multiple brightness levels.
Technical Specification
| Model Name | Jack JK-1530D-CQ |
|---|---|
| Max. Sewing Speed | 2,200 sti/min* |
| Max. Stitch Length | 5mm |
| Lift of the Presser Foot | 9mm |
| Needle Bar Stroke | 35mm |
| Needle | DPx5 |
| Hook | 1.5 Capacity Hook |
| Lubrication | Automatic |
| Dimensions | 795 x 280 x 530mm |
| Gross Weight | 37.5KG |
| Net Weight | 44KG |
More Information
| Part No | JACKJK1530DCQ |
|---|---|
| Weight (KG) | 56.000000 |
| Manufacturer | Jack |
