JACK JK-2060GHC-4Q COMPLETE M/CH N/FEED W/F WITH FOOT LIFTER
Why Buy from Us?
- You are dealing with the official Jack UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements
Description / JACK JK-2060GHC-4Q COMPLETE M/CH N/FEED W/F WITH FOOT LIFTER

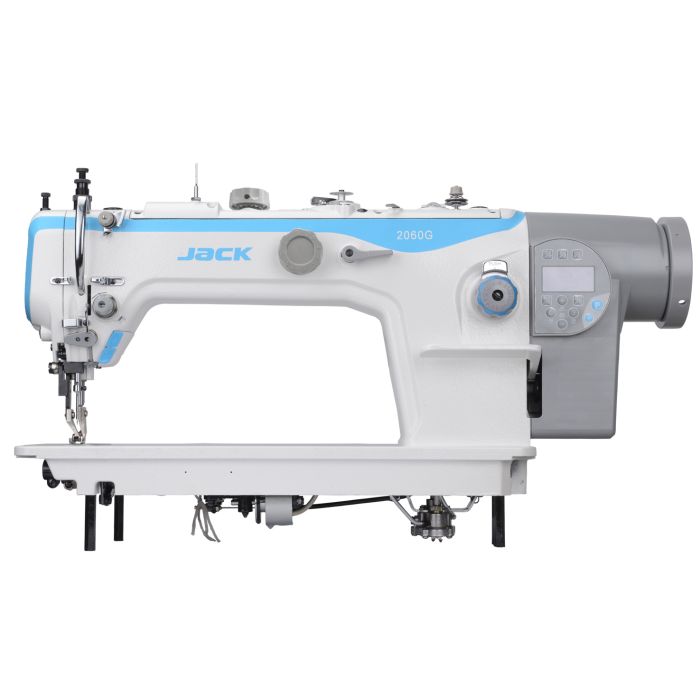

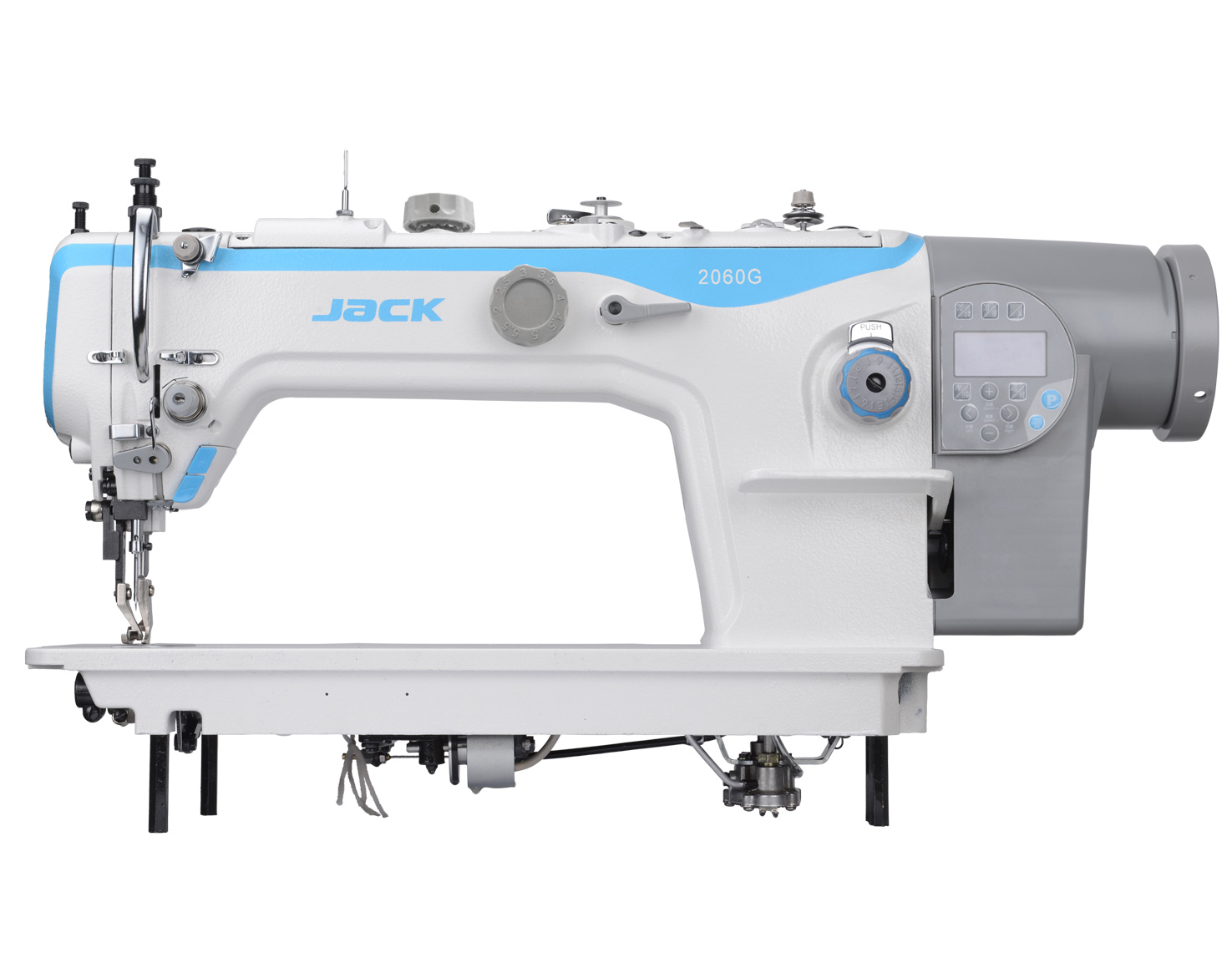

Jack JK-2060GHC-4Q
(Needle, Feed Dog, Presser Foot) Compound Feeding Computerized Lockstitch
1-needle lockstitch machine designed for sewing thicker materials (eg leather, upholstery materials), equipped with an energy-saving motor built directly into the machine head (Direct Drive system). This solution guarantees quiet operation and low power consumption. The double transport (bottom teeth and upper – rolling foot) ensures perfect movement of the upper and lower layers of the sewn materials. The machine has a clear operating panel built into the head and LED illumination at the needle bar. Extended arm – the distance from the body to the needle bar is 33.5 cm.

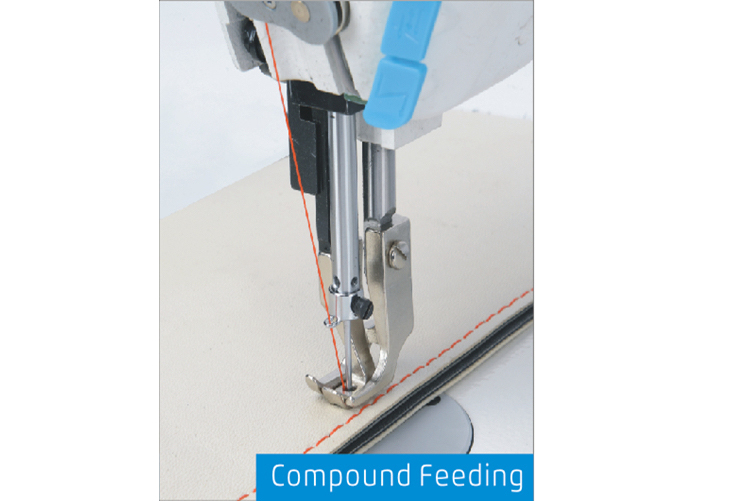

Triple Transport
Avoid staggered layers from being transported, thanks to the movement made up of needle, feed dog and presser foot

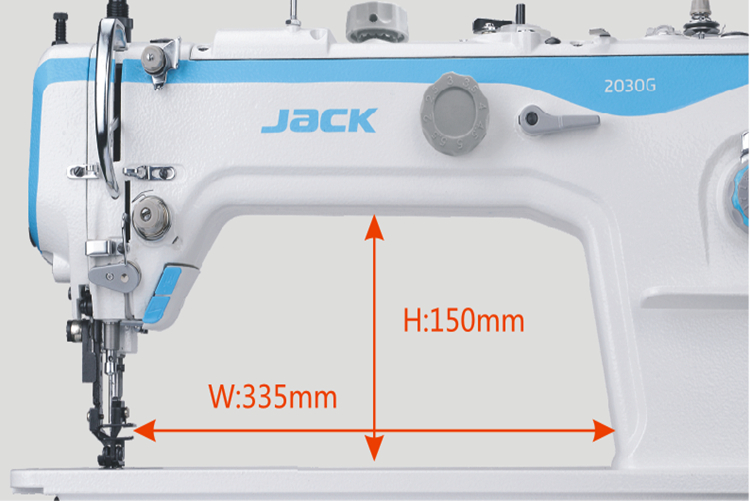

Big Operation Space
335MMX150MM, 75mm wider and 20mm higher than normal, Wide range of applications
All The Power You Need

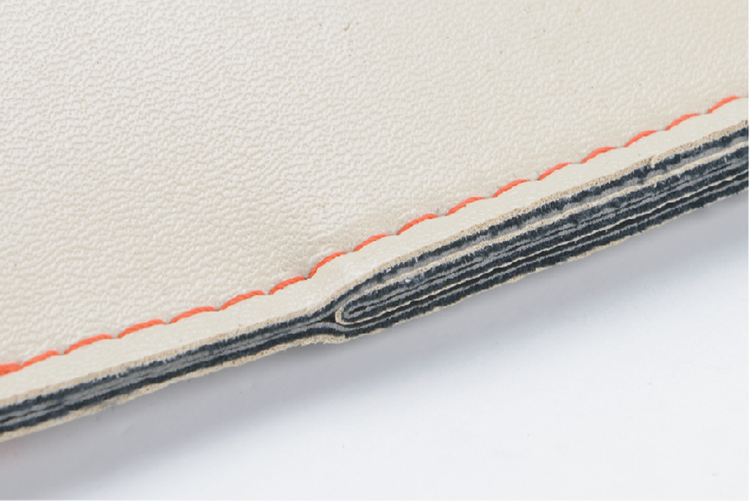

750W servo motor, strong needle perforation, 8 layers of leather can be sewn easily;
Easy To Learn, Easy To Use

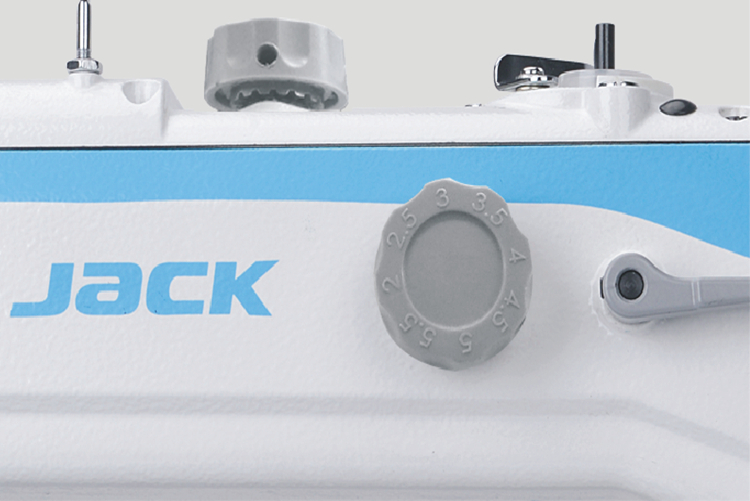

Easy to adjust the inner and outer foot, suitable for various thick fabrics with beautiful stitches.
Technical Specifications
| Model | Jack JK-2060GHC-4Q |
|---|---|
| Application | Sofa, Car Seatr, Luggage, Shoes |
| Needle | DPx17 20-23# |
| Threads | 2 |
| Two Presser Foot Working Distance (mm) | 2.5-5.5 |
| Presser Foot Lifting Height (mm)/th> | 8/16 |
| Max Sewing Speed (S.P.M) | 2200 |
| Automatic Thread Trimming | Yes |
| Auto Reverse | Yes |
| Electronic Thread Tension | Yes |
| Integrated Drive Drive | Yes |
| Auto Presser Foot Lifter | Yes |
| Volume (mm) | 785x320x605 |
| Weight (KG) | 43/53 |
More Information
| Part No | JACKJK2060GHC4Q |
|---|---|
| Weight (KG) | 86.000000 |
| Manufacturer | Jack |
