Description / JACK JK-798TDI-4-514-A04/435 4 THREAD TOP FEED OVERLOCK COMPLETE

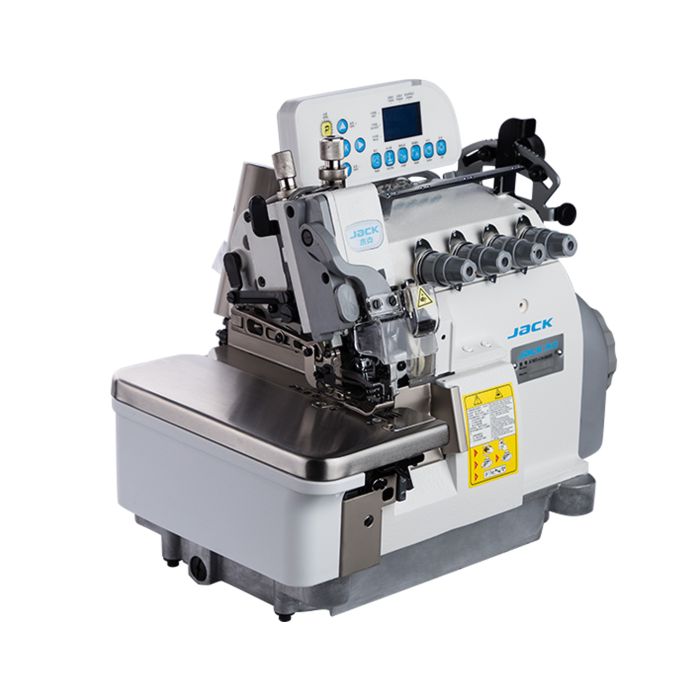

Jack JK-798TDI-4-514-A04/435
Edge Cutter Top Feed 4-Thread Overlock Machine

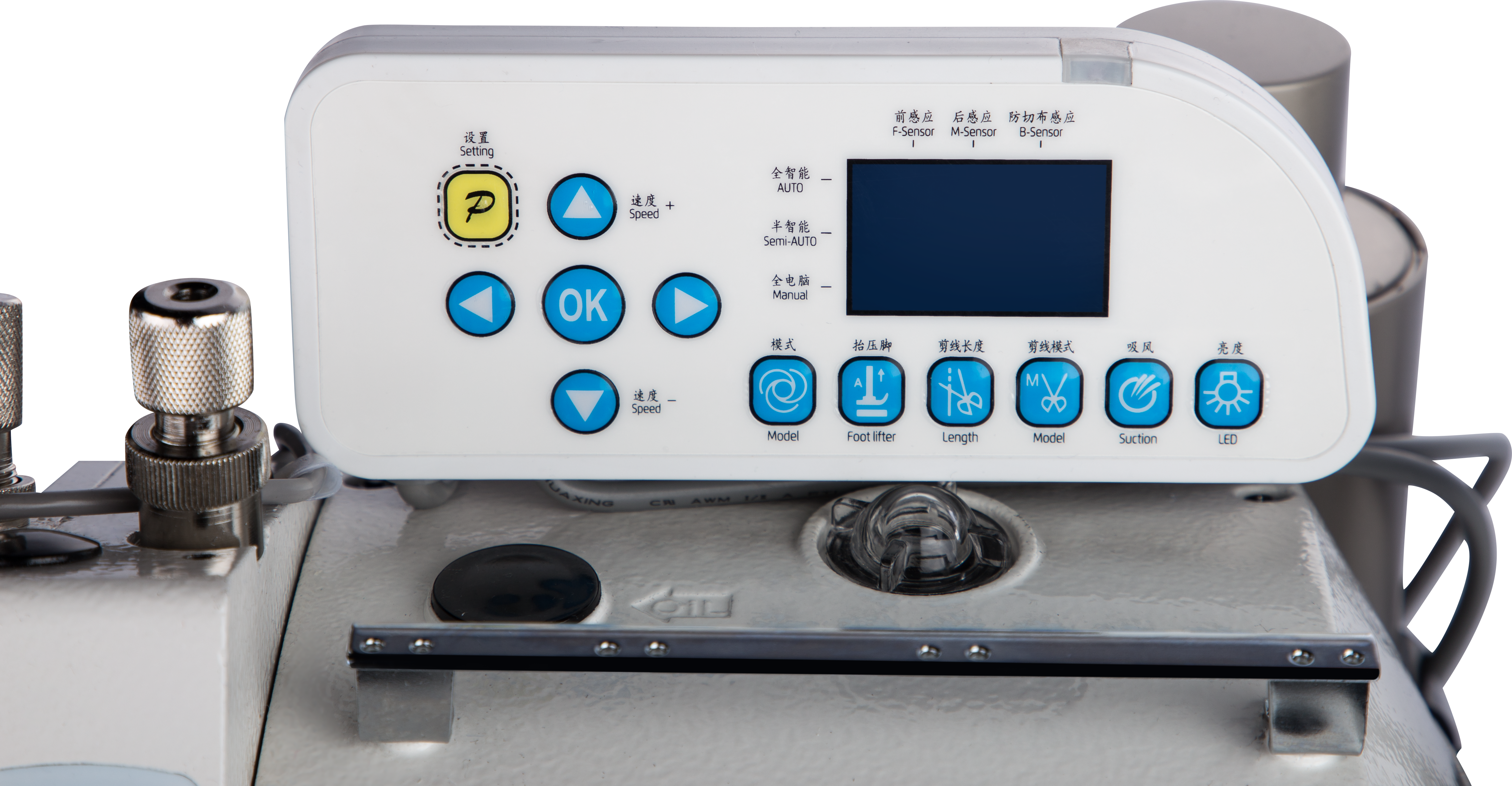

Computerized
An LCD display has been added to control the new functions such as automatic sewing, photocells and the chaincutter from the panel.
Three Sewing Modes
Automatic: works through sensors without the use of the pedal
Semi-Automatic: works with automatic presser foot lifter and automatic chain cutter
Manual: work by selecting the relevant aids from the panel

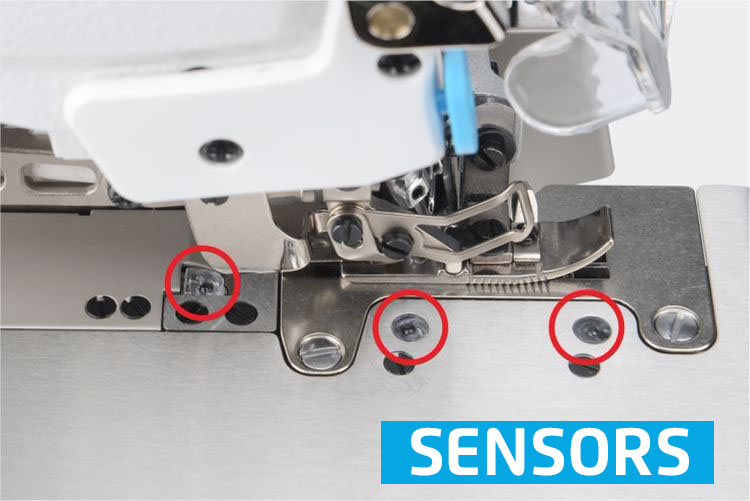

Photocells
The photocells allow you to start and finish the seam automatically, as well as activate the chaincutter and the foot lifter.

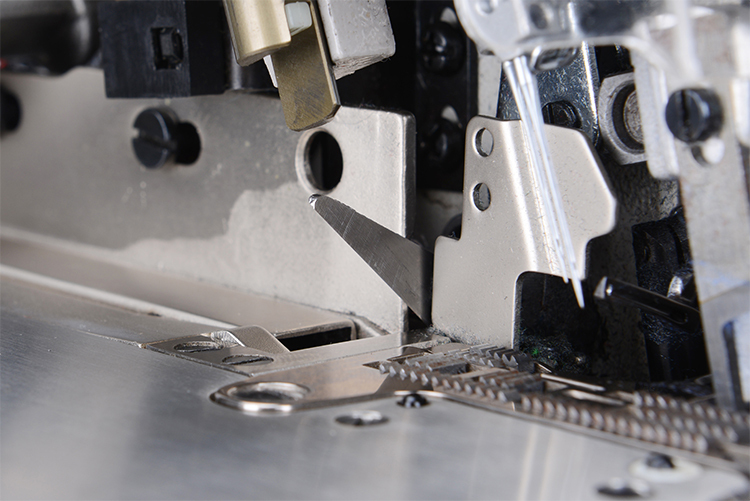

Automatic Electric Chaincutter
Thanks to the photocells, the electronic presser foot lifter and chaincutter are automatic at the end of the seam.

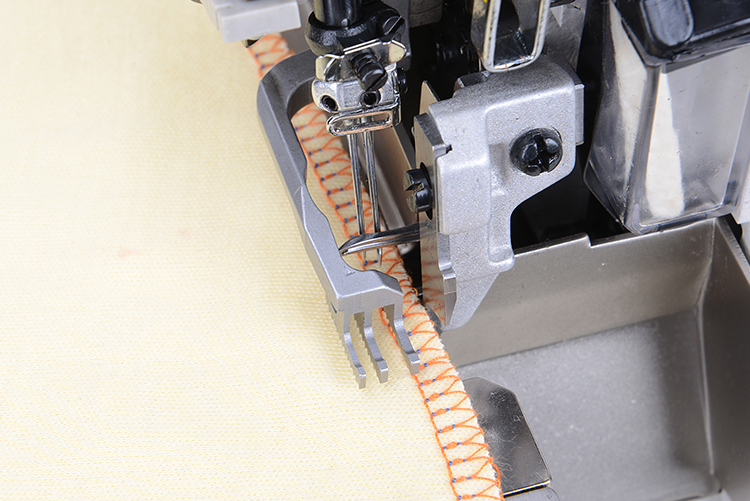

Optimized Feeding Structure
Feeding synchronized with the feed dog, both thin and soft tissues as well as thick fabrics can be fed evenly.

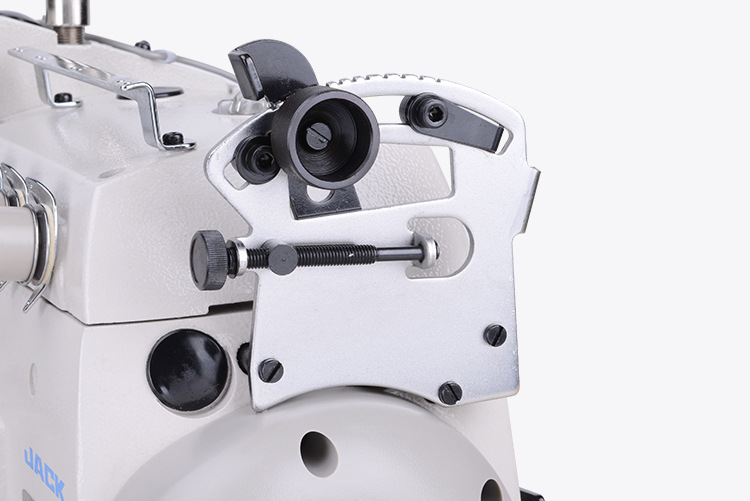

Top Feed
Thanks to the selector it is easy to adjust the difference ratio between the upper and lower feeds.

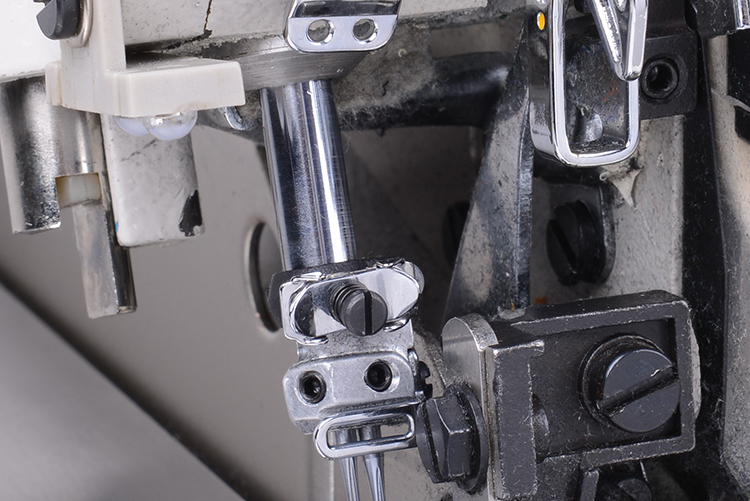

Optimized Needle Bar Structure
Fully enclosed needle bar construction and DLC (diamond like carbon) machining of the needle bar surface.

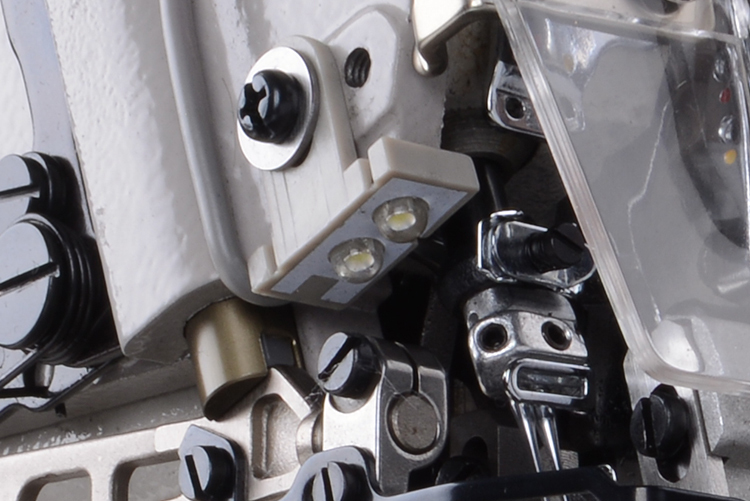

LED Light
The adjustable brightness guarantees the precision of threading without straining the eyes.

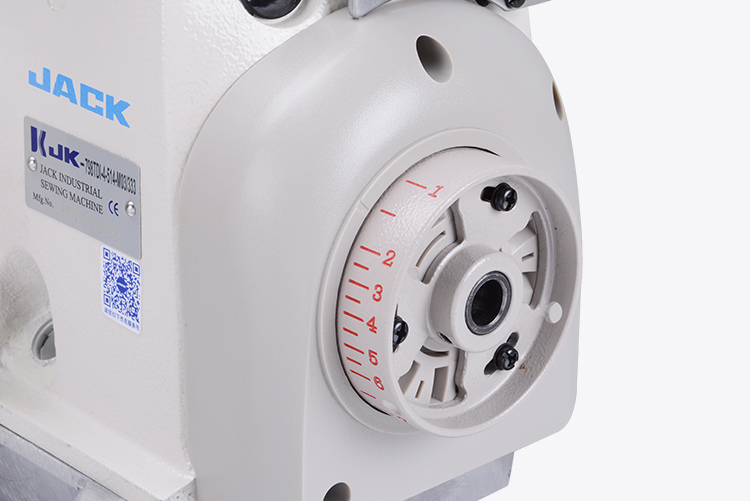

Direct Drive Motor
Thanks to the integrated, energy-saving motor, the time required for assembling the machine is reduced to a minimum.
Technical Specifications
| Model | Jack JK-798TDI-4-514-A04/435 |
|---|---|
| Needle Size | #9 |
| Number of Needles | 2 |
| Number of Threads | 4 |
| Needle Distance | 2 |
| Stitch Width (mm) | 4 |
| Stitch Length | 4.2 |
| Differential Ratio | 0.7-2 |
| Presser Foot Lifting Height (mm) | 5.5 |
| Max Speed (s.p.m) | 5500 |
| Volume (mm) | 472x360x495 |
| Weight (kg) | 25.85/34.35 |
More Information
| Part No | JK798TDI4514A04435 |
|---|---|
| Weight (KG) | 66.000000 |
| Manufacturer | Jack |
