Description / JACK JK-8558G-WZ PARALELL 2N 1/4" DOUBLE CHAINSTITCH POWER SAVING

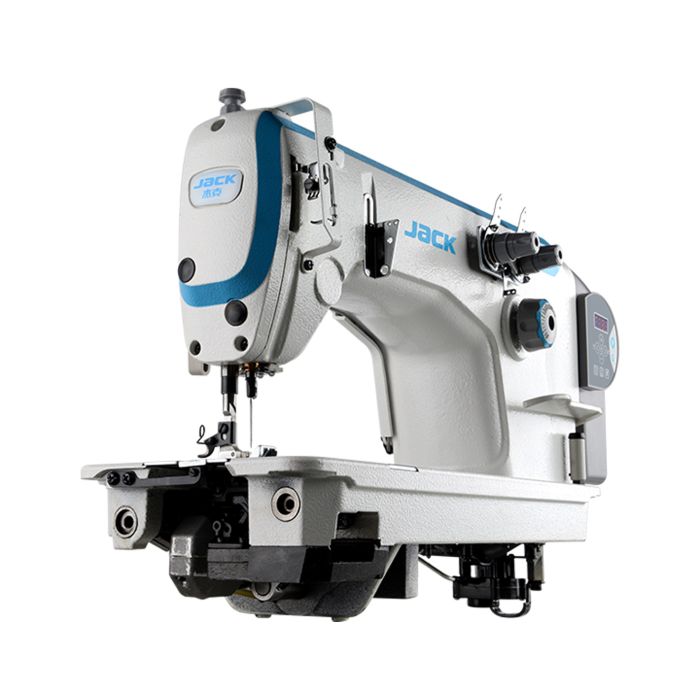

Jack JK-8558G-WZ
2-Needle, Flatbed Chainstitch
Double chainstitch sewing machine with bottom feed transport and built-in energy-saving motor with low vibration and noise level. Chainstitch machines are mainly used in sewing operations, where elastic stitch is required, reliable for clothing exposed to strech during use i.e. side leg stitches in trousers. They are especially recommended for long seams, because the use of chain loopers allows the stitch to be formed directly from thread cone, which eliminates the need to frequent change the bobbins. 2-needle machines are used for production of formal clothing i.e. reinforced seam in men’s trousers or in operations when linen seam is required, and for overlaping. LED lighting of sewing area provided in standard.
Semi Dry Head
The head is lubricated by grease, this completely avoids all oil related problems to have a clean seam. DLC needle bar (Carbon)
Energy Saving
71% energy savings thanks to the built-in servo eco motor, which ensures efficient and silent work.
New Design And Easy Installation
The new mechatronic design, the beautiful and modern line of the machine, the quick and easy installation, saves time and effort.
Easy To Use And Easy To Learn
The panel is simple and the monitoring and adjustment of various functional parameters are more intuitive and convenient, easy to learn and use.
Automatic Presser Foot Lifter
In addition to being functional, the device is integrated into the design of the machine.
Two Needle Positions
It is possible to set the high and low needle position from the digital display.
Technical Specifications
Model | Jack JK-8558G-WZ |
---|---|
Needle Array | Parallel Double Needle |
Needle Gauge | 1/4" |
Needle | TVx7 14# |
Number of Needles | 2 |
Number of Threads | 4 |
Needle Distance (mm) | 1.4-4.0 |
Presser Foot Lifting Height (mm) | 4.5 (Knee Contact 8-10) |
Light-Weight Material | Yes |
Medium-Weight Material | Yes |
Heavy-Weight Material | |
Max Speed (s.p.m) | 4000 |
Volume (mm) | 675x275x595 |
Weight (kg) | 39/47 |
More Information
Part No | JACKJK8558GWZ |
---|---|
Weight (KG) | 32.000000 |
Manufacturer | Jack |
