JACK JK-8740C-460-02-D-AW1S 4N 6.0MM FLATSEAMER COMPLETE

Jack JK-8740C-460-02-D-AW1S 4 Needle Feed Of The Arm 4-Needle, 6-Thread, Feed-off-the-Arm Machine
Pricing and Availability on Request
Contact Us for Quote

Why Buy from Us?

  • You are dealing with the official Jack UK Importing and Distributing Network
  • Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
  • Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements

Description / JACK JK-8740C-460-02-D-AW1S 4N 6.0MM FLATSEAMER COMPLETE

Jack JK-8740C-460-02-D-AW1S

4 Needle Feed Of The Arm

4-Needle, 6-Thread, Feed-off-the-Arm Machine

4 needle 6 thread feed of the arm machine with cover stitch. Direct drive motor, pneumatic thread trimmer and suction suitable for underwear, swimsuits, neoprene diving suits, sportswear.

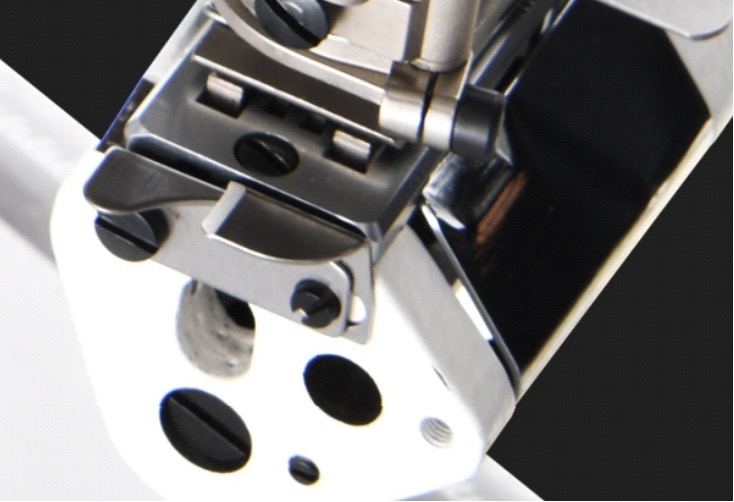

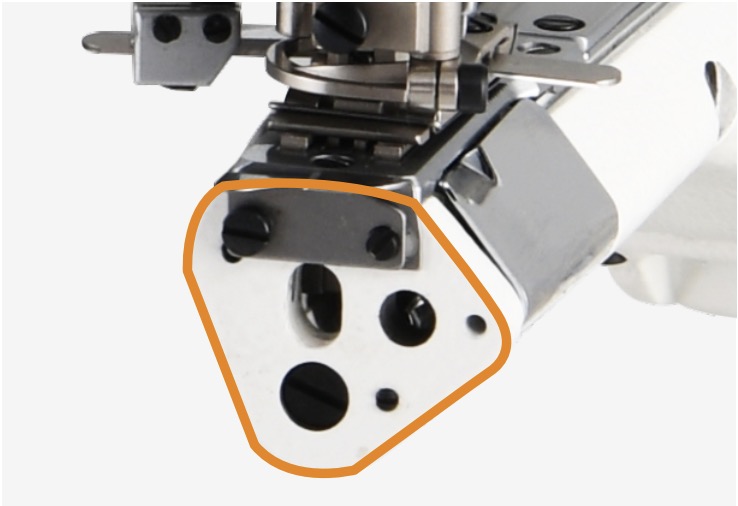

Small Cylinder Bed

The small arm measures only 150mm, making the machine suitable for closing very small tubes.

Automatic Presser Foot Lifter

The automatic foot lifter with spring structure allows wide adaptability to various types of fabric.

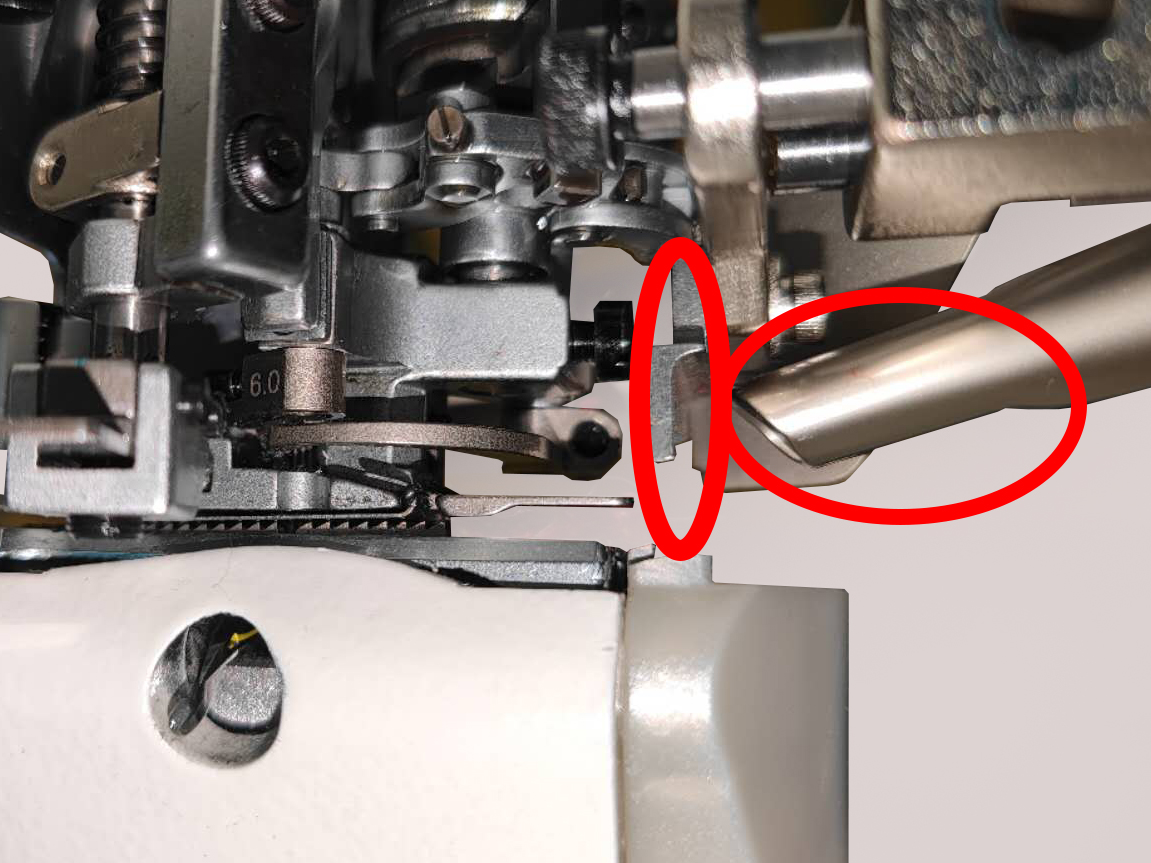

Pneumatic Thread Trimmer (UTL)

Thanks to the integrated photocell it is possible to activate the automatic cut at the beginning and end of the seam, furthermore the suction takes away the excess chain stitch.

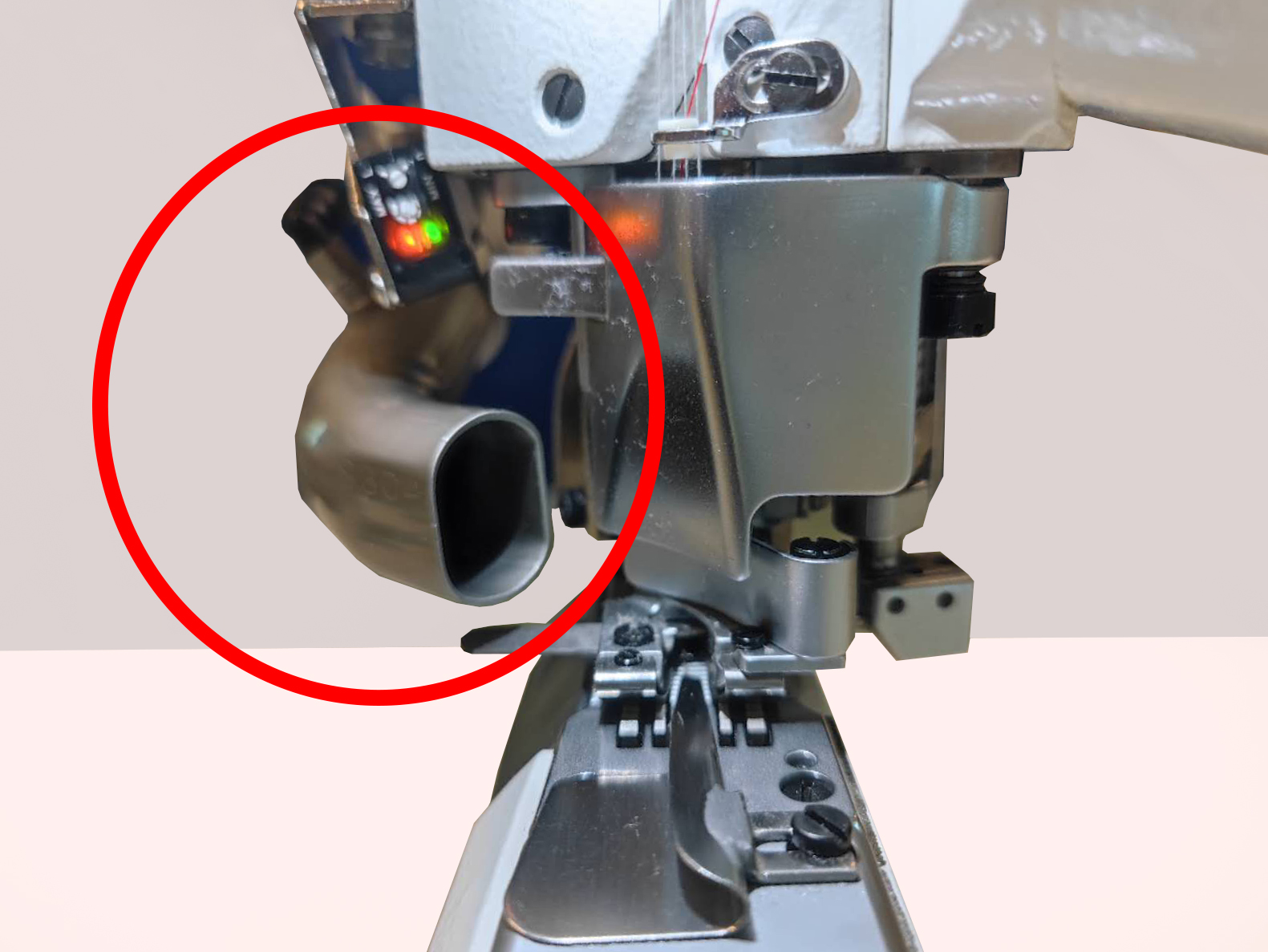

Wasted Suction Device

The waste generated by the trimming knife are sucted keeping the workspace tidy and clean, without accumulating dirt.

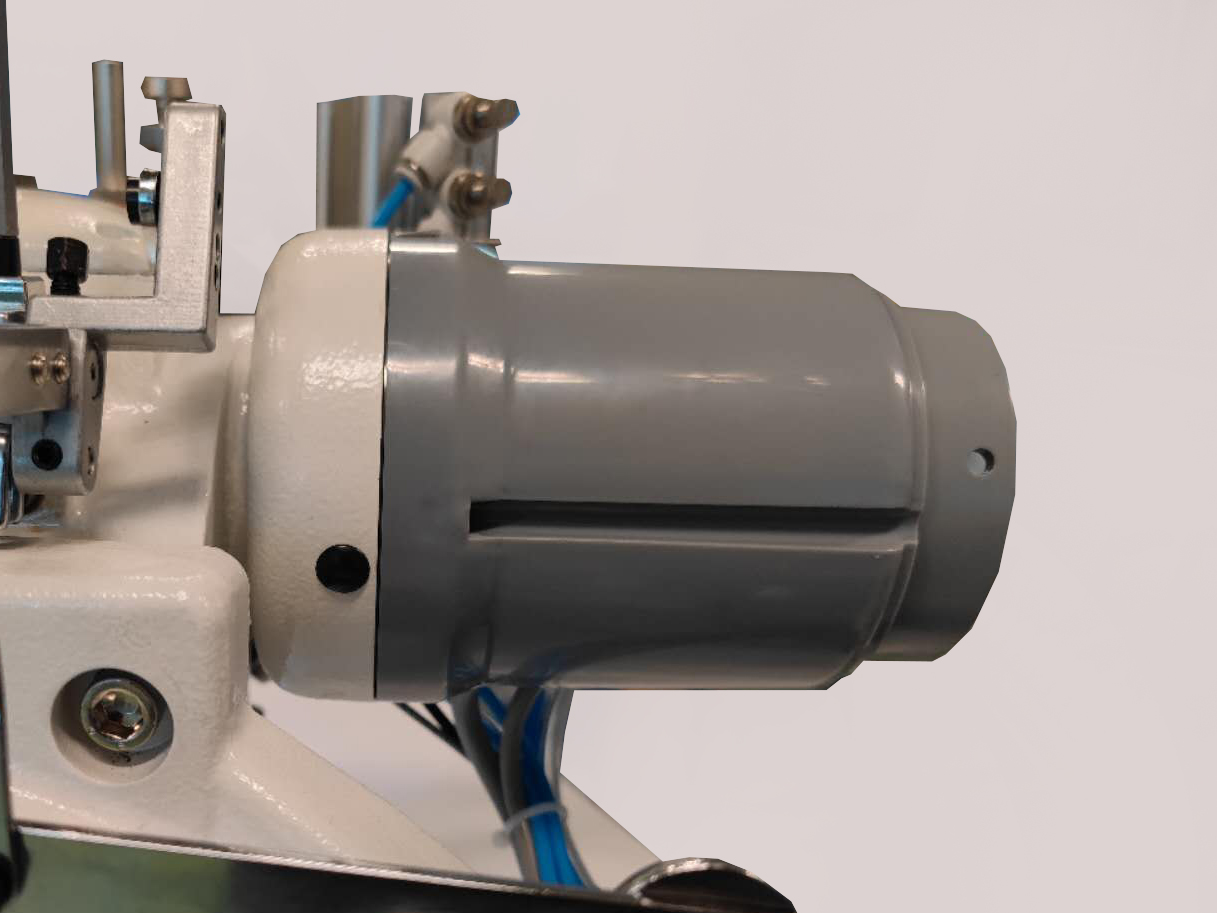

Direct Drive Motor

Silent motor with reduced vibrations and low energy consumption, it also allows greater safety and speed in assembly and installation.

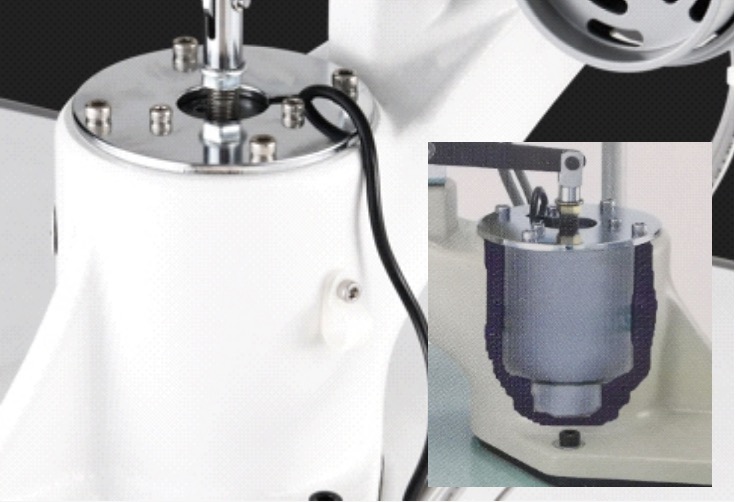

No Oil Leaks

Thanks to the sealed structure, you will not have oil leaks that will ruin your clothes.


Technical Specifications

Model Jack JK-8740C-460-02-D-AW1S
Threads 6
No. of Needles 4
Needle Gauge 1.4 - 3.0
Differential Ratio 1:06 - 1:1.5
Presser Foot Height 6.0
Needle Bar Distance 30
Max Speed 3200 s.p.m
Fabric Cutting Method Two-Way Cutting
Trimming Method Manual
Volume 64.5mm x 53.5mm x 49.5mm
Weight 44.3kg / 58.4kg

More Information

Part No JK8740C46002DAW1S
Weight (KG) 81.000000
Manufacturer Jack
