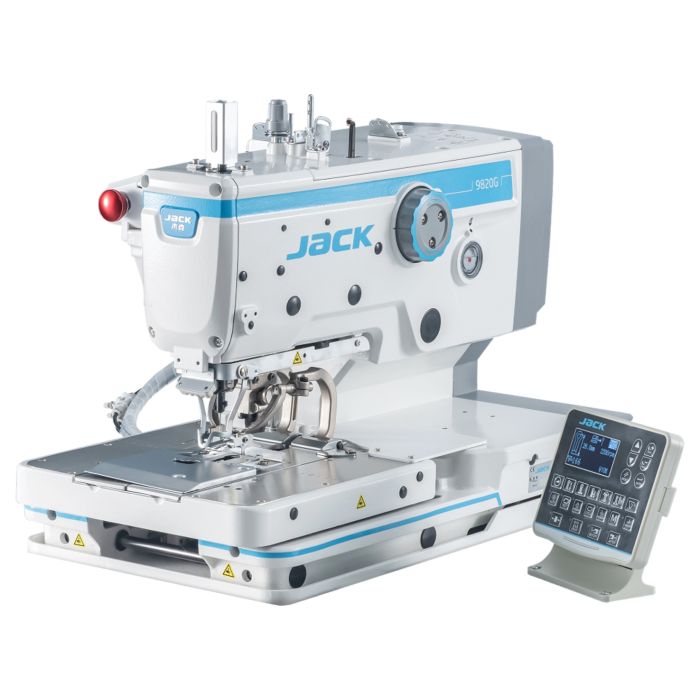

JACK JK-T9820G-01 EYELET BUTTON HOLE MACHINE COMPLETE
Why Buy from Us?
- You are dealing with the official Jack UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements
Description / JACK JK-T9820G-01 EYELET BUTTON HOLE MACHINE COMPLETE
Jack JK-9820-01
Eyelet Button Hole Machine
Thread Clamp Structure
Optimizes the locking of the thread and avoids problems at the start of the seam.
Noise Reduction
Special machining on gears and camshafts to reduce vibrations and noise (80dB reduction).
Accurate Stitching
The machine controlled by the servo-motor makes sewing precise even at high speed. The control system allows you to always maintain the initial position.
Stitch Jump Reduction
Once the hooks and other mechanical parts have been optimized, the machine can sew with lighter thread tension thus reducing stitch skipping and thread breakage.
LCD Display With Icons
The cutting length and the position of the blade can be precisely adjusted.
Air System
Improved air attacks to make connections faster and stronger
Big Operation Space
The 120mm machine body space is suitable for different types of fabric and garment types, especially suitable for sewing multiple holes and back pockets.
Technical Specifications
| Model | Jack JK-9820-01 |
|---|---|
| Needle Thread Trimmer | Long Thread Trim |
| Bobbin Thread Trim | Long Thread Trim |
| Main Applications | Men's Clothing Casual Clothing |
| Other Application | Suit-Dress Jeans Trousers |
| Function | Trimming both needle and bobbin thread |
| Sewing Length | Round Head Eyehole: 8 - 43mm Straight Button Hole: 5 - 42mm |
| Press Foot Length (Standard) | 30mm |
| Length of Hammer (Standard) | 22mm |
| Length of Hammer (Accessory) | 30mm |
| Max Speed (s.p.m) | 1500 - 2500 |
| Needle Code | 0.5 - 2.0mm |
| Zig Zag Sewing Width | In mechanical conditions, it is 4.0mm wide at the most and the zigzag sewibg width is 5.0mm at most |
| Zig Zag Sewing Width (Factory Setting) | 2.5mm |
| Length of stream head | 0 - 20mm |
| Height of Work Clamp | Standard Height is 12mm (May reach 16mm at highest) |
| Start-off Mode | Double Pedal Switch |
| Fabric Feeding Device | Intermittent cloth-sending of 3 pulse motor (X, Y) |
| Machine Needle | DOx558 Nm80 - Nm120 |
| Safe Setting | If there are any prblems, the inner settiong with urgent stop function and driven by safe circuit will automatically stop the machine |
| Upper Shaft Motor | WAC Servo Motor 550W |
| Air Pressure | Main Regulator: 0.5Mpa Hammer-Pressure Regulator: 0.4Mpa |
| Air Consumption Volume | 43.2 liter/minute (8 cycles/minute) |
| Weight | Machine Head: ~120kg Operation Board: ~0.6kg Control Box: 14.2 - 16.2kg |
| Volume | 123x83x144 mm |
| Power Supply | Single Phase 100V/200V, Three phases 200V/220V/380V/400V, 400VA |
More Information
| Part No | JACKJK982001 |
|---|---|
| Weight (KG) | 140.000000 |
| Manufacturer | Jack |
