JACK JK-T2284B-4E STANDARD/3 STEP UBT ZIG ZAG DIRECT DRIVE MACHINE
Why Buy from Us?
- You are dealing with the official Jack UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements
Description / JACK JK-T2284B-4E STANDARD/3 STEP UBT ZIG ZAG DIRECT DRIVE MACHINE

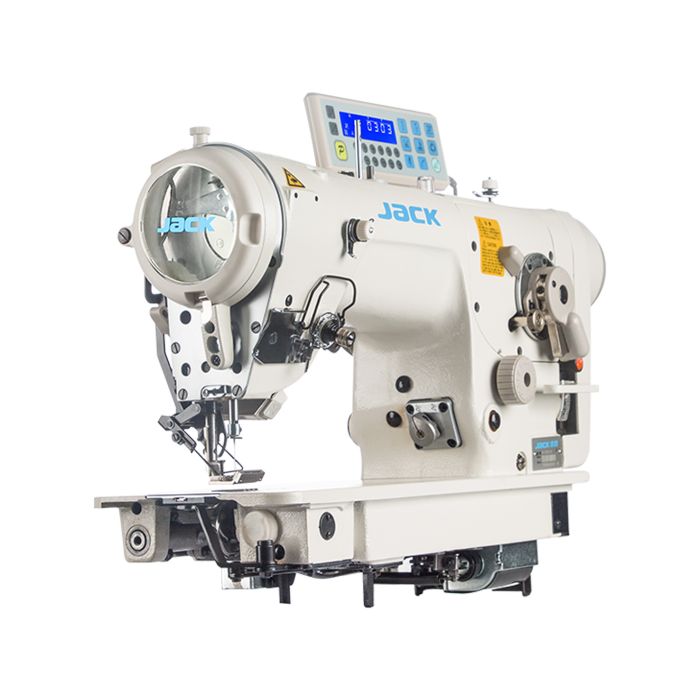

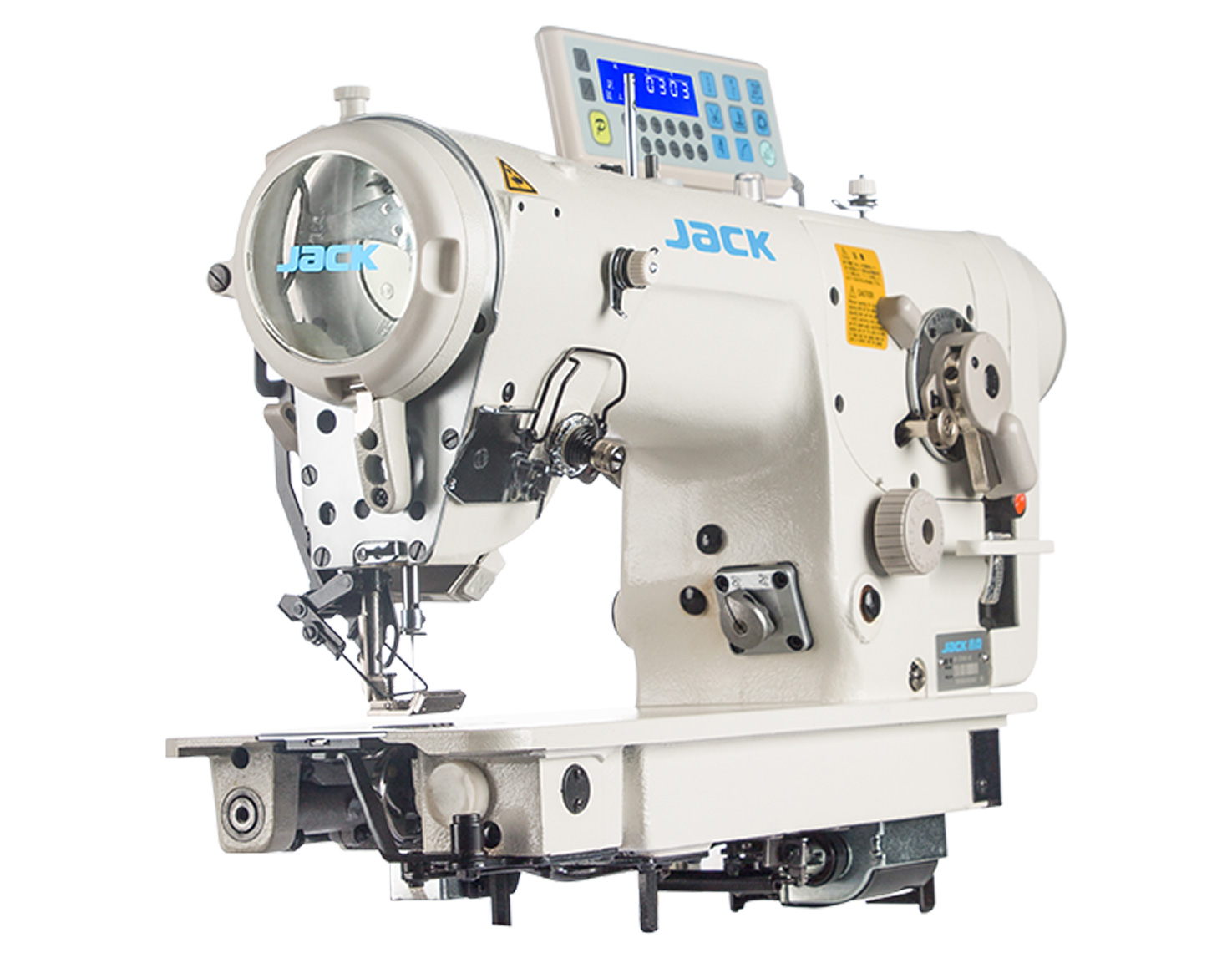

Jack JK-T2284B-4E
Automated 3-Step Zig Zag
Automatic Zig-Zag machine, equipped with an energy-saving motor mounted in the head, directly on the main shaft of the machine (Direct Drive). This solution guarantees quiet and reliable operation and lower electricity consumption. A closed lubrication system (no typical oil pan) guarantees lower oil consumption, better lubrication of the machine mechanisms and protects against accidental staining of the material.
Three Stitch
3-stiches Zig Zag available with this pattern.
Computerized
Through the panel you can adjust the various advanced functions of the machine.
8mm Zig Zag
The JK-2284 machine is suitable for sewing: women's underwear, jackets, gloves, elastic reinforcements and other products that require zig-zag stitching up to 8mm wide or three stitch.

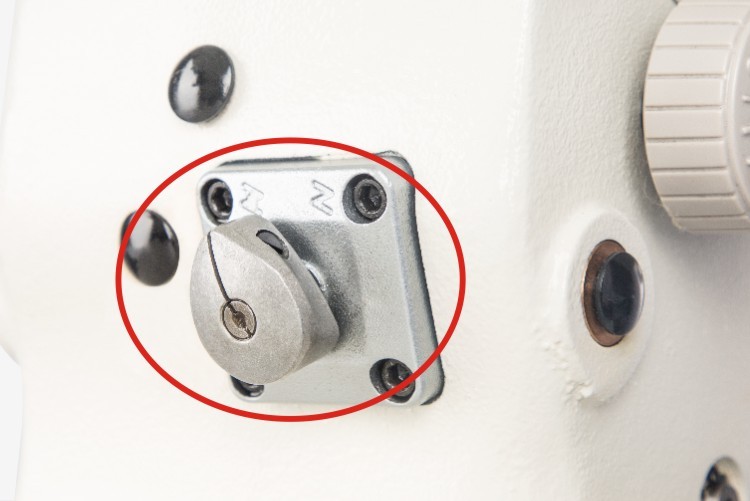

Easy Zig Zag Width Adjustment
With a knob it is possible to adjust the oscillation of the needle bar according to the user's needs.
Elastic Foot
The seams made on thin materials and stretch fabrics remain particularly stable.
Footlifter Bartack Thread Trimmer E Thread Wiper
2284-4E* Model
Technical Specifications
| Model | Jack JK-T2284B-4E |
|---|---|
| Needle | DPx5 10#-14# |
| Stitch Pitch | 8 |
| Presser Foot Height (mm) | 5.5-10 |
| Auto Reverse | Yes |
| Auto Trimming | Yes |
| Auto Thread Tension Release | Yes |
| Auto Wiper | Yes |
| Auto Presser Foot Lifter | Yes |
| Speed (S.P.M) | 4500 |
| Weight | 39/47 |
| Volume (mm) | 770x350x620 |
More Information
| Part No | JACKJKT2284B4E |
|---|---|
| Weight (KG) | 70.000000 |
| Manufacturer | Jack |
