Description / JACK JK-T2284B STANDARD/3 STEP ZIG ZAG DIRECT DRIVE MACHINE

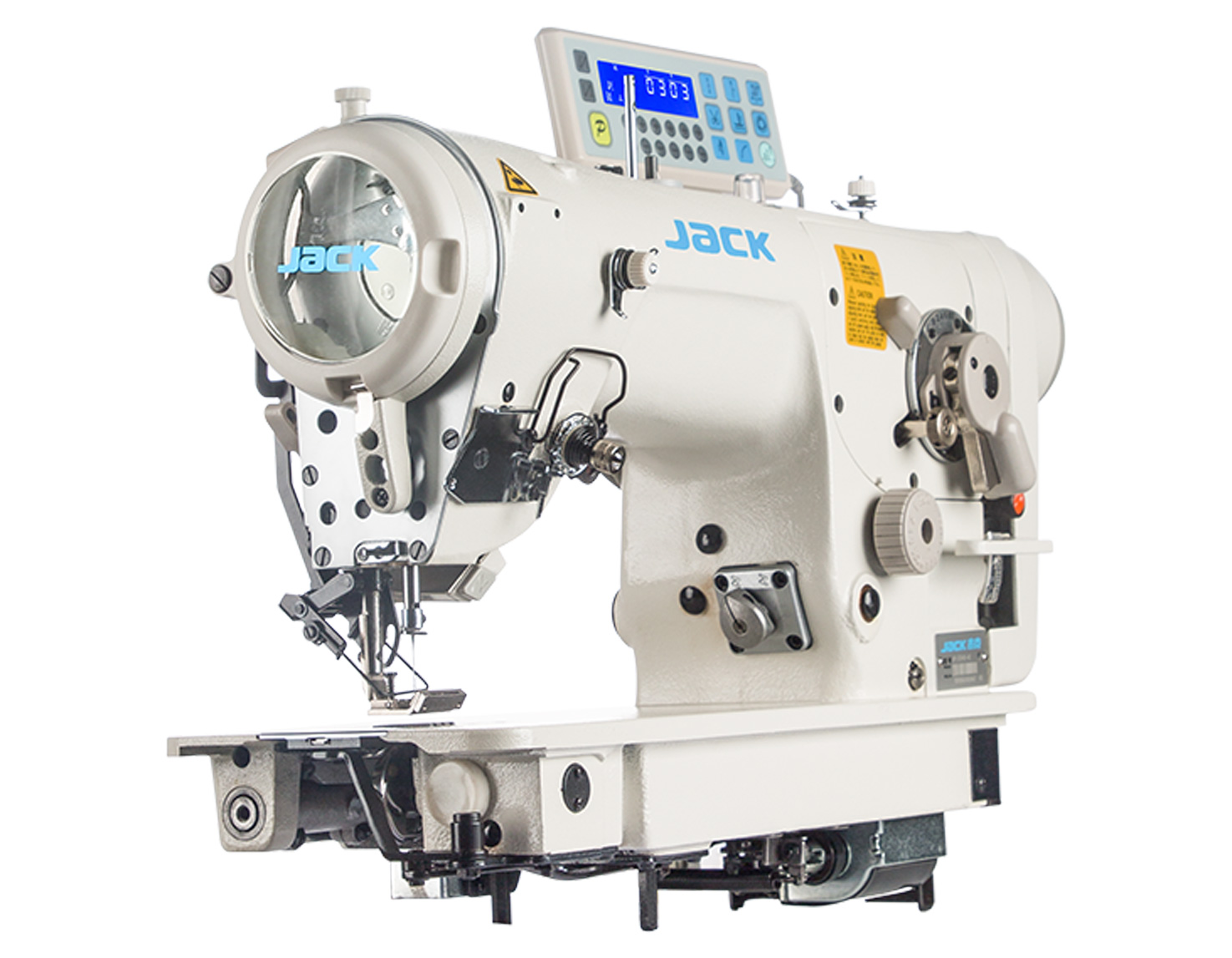

Jack JK-T2284B
3-Step Zig Zag
Automatic Zig-Zag machine, equipped with an energy-saving motor mounted in the head, directly on the main shaft of the machine (Direct Drive). This solution guarantees quiet and reliable operation and lower electricity consumption. A closed lubrication system (no typical oil pan) guarantees lower oil consumption, better lubrication of the machine mechanisms and protects against accidental staining of the material.
Three Stitch
3-stiches Zig Zag available with this pattern.
Computerized
Through the panel you can adjust the various advanced functions of the machine.
8mm Zig Zag
The JK-2284 machine is suitable for sewing: women's underwear, jackets, gloves, elastic reinforcements and other products that require zig-zag stitching up to 8mm wide or three stitch.
Easy Zig Zag Width Adjustment
With a knob it is possible to adjust the oscillation of the needle bar according to the user's needs.
Elastic Foot
The seams made on thin materials and stretch fabrics remain particularly stable.
Technical Specifications
| Model | Jack JK-T2284B |
|---|---|
| Needle | DPx5 10#-14# |
| Stitch Pitch | 8 |
| Presser Foot Height (mm) | 5.5-10 |
| Auto Reverse | - |
| Auto Trimming | - |
| Auto Thread Tension Release | - |
| Auto Wiper | - |
| Auto Presser Foot Lifter | - |
| Speed (S.P.M) | 4500 |
| Weight | 39/47 |
| Volume (mm) | 770x350x620 |
More Information
| Part No | JACKJKT2284B |
|---|---|
| Weight (KG) | 75.000000 |
| Manufacturer | Jack |
