Description / JACK MS-90A-81TX PROG PATTERN SEWER 1400MM X 810MM

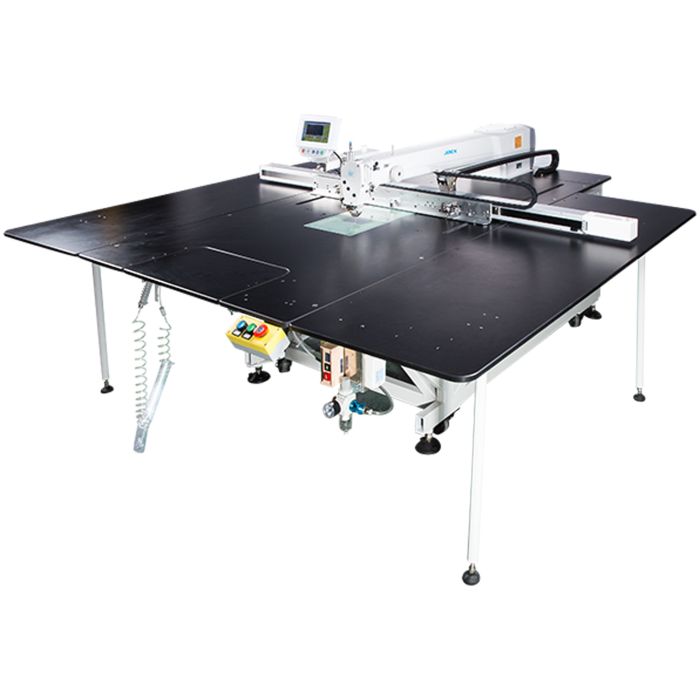

Jack MS-90A-81TX
Advanced Pattern Field Machine - Sewing Area 1400 x 810 mm
Advanced pattern field machine with big sewing range 140x81cm, advanced for different materials, with double screw transmission. Remote PC programmable.
Adjustable Presser Foot
Prevents stitch skipping, thread breakage, prevents product damage and meets the sewing requirements of different fabrics.
Open Window
The opening and closing of the work surface allows easy threading of the machine and a quick change of bobbin.
Big Operation Space
The 1400x810mm Pattern Field is managed by the X-dimension system that allows you to manage the X axis by considerably reducing vibrations, also increasing the fluidity of movement.
Wide Range Of Feet
It is possible to choose the presser foot from a wide range, so that it meets the different requirements for different sewing operations.
RFID Reader
The radio frequency reader reads disks where you can save the drawing of sewing endless times. When you approach the template, the machine will automatically change the drawing.
Industry 4.0 (Optional)
Thanks to the integrated WIFI module you can modify the parameters and control the productivity of the machine directly from the application. NB: a Jack gateway must be purchased for every 50 machines
Screw Transmission
The double screw transmission for the Y direction which allows to improve efficiency unlike the belt transmission where maintenance is greater.
Technical Specifications
| Model | Jack MS-90A-81TX |
|---|---|
| Application | Plate Sewing |
| Needle | DPx5 7 - 16# |
| Sewing area (mm) | 1200x850 |
| Number of Needles | 1 |
| Number of Threads | 2 |
| Presser Foot Height (mm) | 17 |
| Max Speed (s.p.m) | 3000 |
| Volume (mm) | 2160x1100x1350 |
| Weight (kg) | 527/620 |
More Information
| Part No | JACKMS90A81T |
|---|---|
| Weight (KG) | 32.000000 |
| Manufacturer | Jack |
