Description / JACK URUS C7-5-03/333 5 THREAD DIRECT DRIVE OVERLOCK

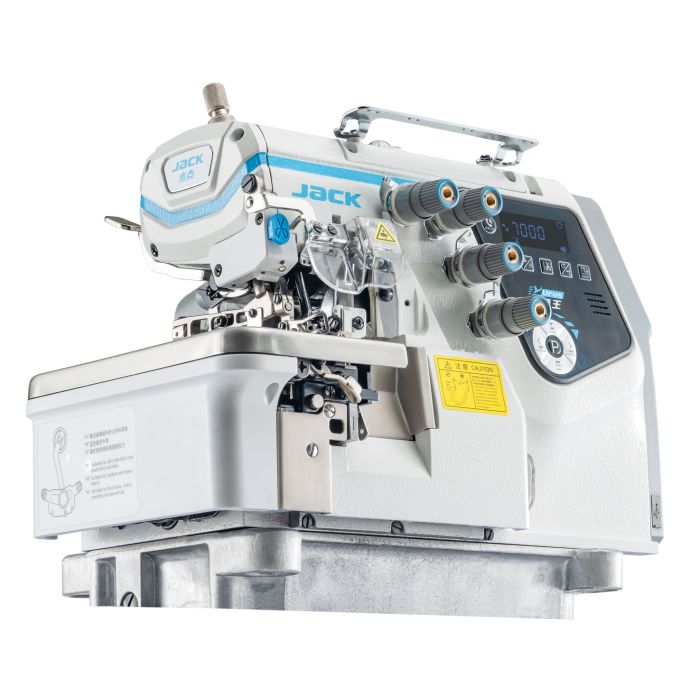

The New Jack Urus (C7) 5-Thread Full Speed Cross Seam Intelligent Overlock Machine

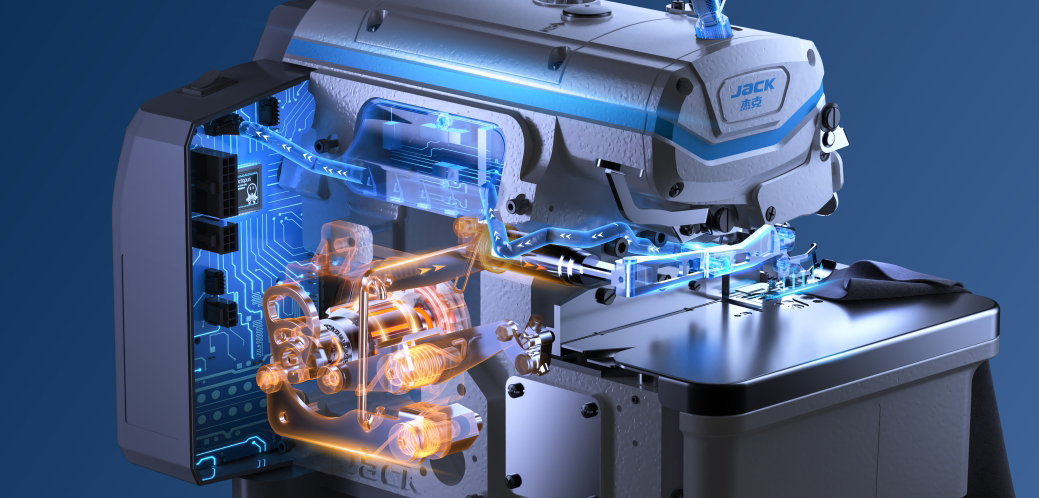

AI Full Speed Feeding System
Real-time sensing position changes for the joint of fabric, and calculating the optimal coordination ratio between force and feeding force through AI calculation, realising Presser Foot Tranformer and Smart Rhino Feeding. Synchronous response, cross through various joints of thick, thin, elastic, hard, etc, at full speed without slowing down.
Presser Foot Transformer
Intelligent Perception, Realtime Pressure Change
32,000 times/second multi-model intelligent detection. +1 milliondata models, achieving 0.0000+ microsecond pressure response.

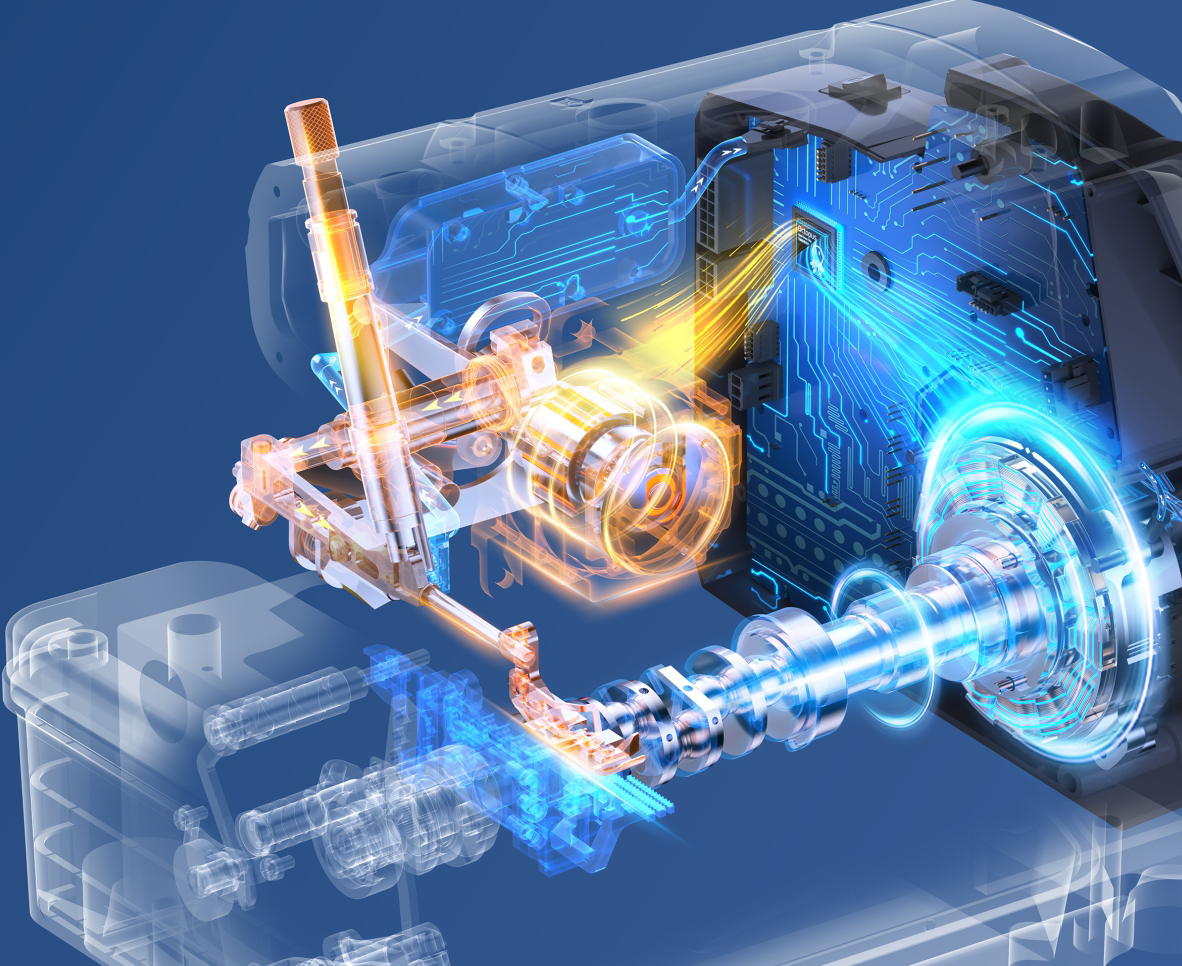

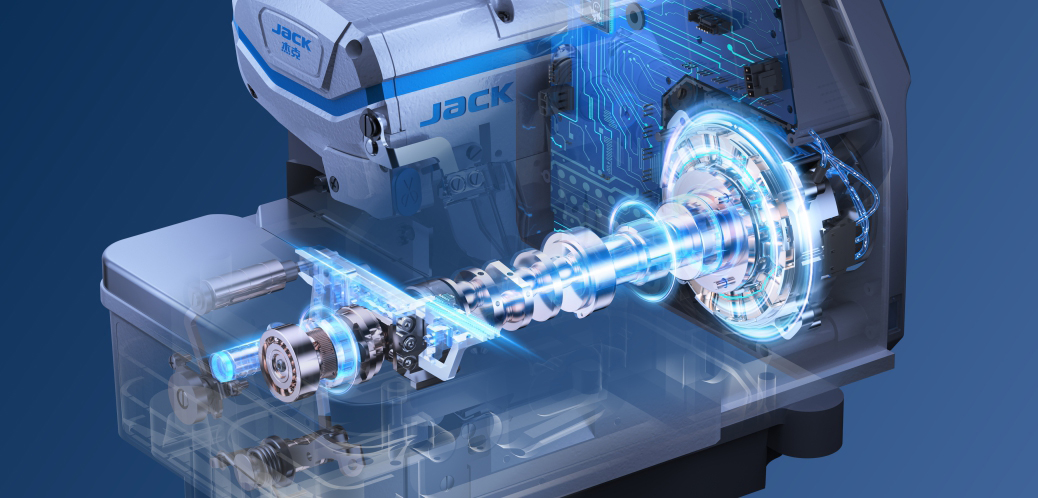

Smart Rhino Feeding
Intelligent Matching, Precise Feeding
9.2Nm super torque + precise feeding force for every degree of 360 degrees
Technical Specification
| Model | Jack Urus C7-5-03/333 |
|---|---|
| Application | 3x4 Stitch |
| Needle | 14# |
| Number of Needles | 2 |
| Number of Threads | 5 |
| Needle Gauge | 3.00 mm |
| Stitch Width | 3x4 mm |
| Stitch Length | 0.8-3.8 mm |
| Differential Ratio | 0.7-2 |
| Height of Presser Foor | 10 |
| Max Sewing Speed | 7000 s.p.m |
| Volume | 525x360x510 mm |
| Weight | 33 / 41 Kg |
More Information
| Part No | JACKC7503333 |
|---|---|
| Weight (KG) | 69.000000 |
| Manufacturer | Jack |
