JACK W4-UT-01GB X 356 3N 5.6MM UBT TOP & BOTTOM COVERSEAM COMPLETE

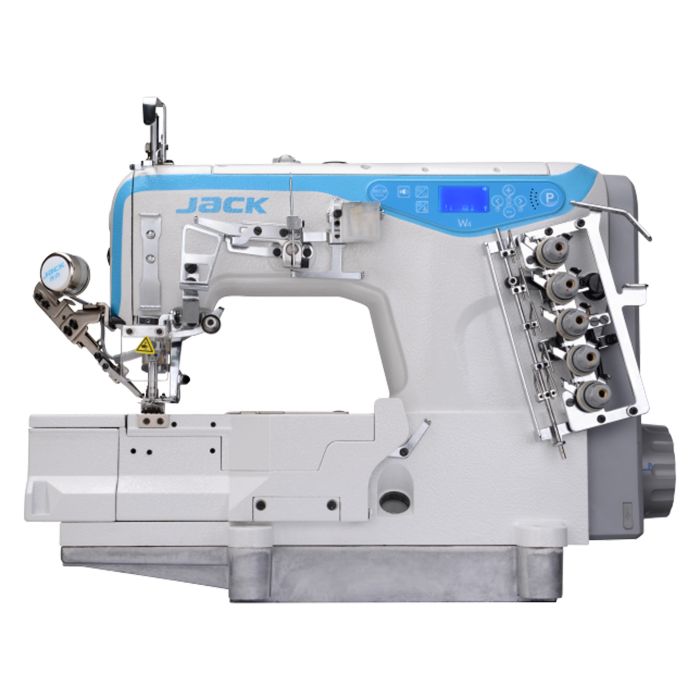

Jack W4-UT-01GB X 356
3-Needle 5.6mm UBT Top & Bottom Flatbed Interlock
Automatic Thread Trimmer (UT)
Pricing and Availability on Request
Why Buy from Us?
- You are dealing with the official Jack UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements
Description / JACK W4-UT-01GB X 356 3N 5.6MM UBT TOP & BOTTOM COVERSEAM COMPLETE
Jack W4-UT-01GB X 356
3-Needle 5.6mm UBT Top & Bottom Flatbed Interlock
Automatic Thread Trimmer (UT)
Upper and lower thread trimmers: the life of the scissors is longer, with less hassle and high efficiency - 100% accuracy
For Light And Heavy Duty
Expand sewing range, suitable for various fabrics.
Voice Guide
Using the machine it will teach you the various functions itself, if there are errors it will notify you and by clicking the VOICE button it will suggest how to solve the problem, moreover with a single key you can return to the initial settings. (Only on -UT)
Multifunction
Normal sewing, tape binding and bottom hem sewing.
Integrated Design
Mechanical and electronics come together in a clean design without wiring but integrated.
Technical Specifications
| Model | Jack W4-UT-01GB X 356 |
|---|---|
| Function | Elastic Lace Attaching (Right-Side Cutter) |
| Needle | UY128GAS 11-14# |
| Number of Needles | 3 |
| Number of Threads | 5 |
| Stitch Width (mm) | 1.5-4.55 |
| Stitch Length | 5.6/6.4 |
| Differential Ratio | 0.65-1.3 |
| Presser Foot Lifting Height (mm) | 7 |
| Max Speed (s.p.m) | 5500 |
| Volume (mm) | 670x445x595 |
| Weight (kg) | 48/58 |
More Information
| Part No | JACKW4UT01GB |
|---|---|
| Weight (KG) | 84.000000 |
| Manufacturer | Jack |
