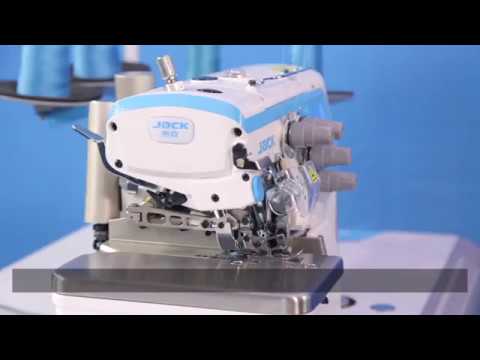

JACK C4-5-03/333 5 THREAD DIRECT DRIVE SUPER HIGH SPEED OVERLOCK
Why Buy from Us?
- You are dealing with the official Jack UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements
Description / JACK C4-5-03/333 5 THREAD DIRECT DRIVE SUPER HIGH SPEED OVERLOCK
Jack C4-5-03/333
High Speed Automatic 5-Thread Overlock Machine
Sewing machine with 3 easy to change function modes, manual, semi-automatic and automatic. Lubricated needle bar, vibrations and noise reduced to a minimum. Photocells, chain cutter and foot lifter included.
Three Sewing Modes
Automatic: works through sensors without the use of the pedal
Semi-Automatic: works with automatic presser foot lifter and automatic chain cutter
Manual: work by selecting the relevant aids from the panel
Effective Oil Control
Needle bar and sealed oil pickup system to prevent oil leaks.
Voice Guide
Using the machine, it will teach you the various functions itself, if there are errors it will notify you and by clicking the VOICE button it will suggest how to solve the problem, moreover with a single key you can return to the initial settings.
Single Motor Shaft
Reduces the torque, the machine works more stable.
Speed Up To 7000 R.P.M
The maximum speed is 7,000 rpm, which is 35% faster than a standard machine.
Photocells
Allow you to start and finish the seam automatically, as well as activate the chaincutter and the foot lifter.
Adjustable Overedge
From 6 to 10mm.
Footlifter And Chain Cutter
Thanks to the photocells, the electronic presser foot lifter and chaincutter are automatic at the end of the seam.
Technical Specifications
| Model | Jack C4-5-03/333 |
|---|---|
| Application | 3x5 Stitch |
| Needle | DCx27 |
| Needle Size | #14 |
| Number of Needles | 2 |
| Number of Threads | 5 |
| Needle Distance | 3 |
| Stitch Width (mm) | 4 |
| Stitch Length | 3.8 |
| Differential Ratio | 0.7-2 |
| Presser Foot Lifting Height (mm) | 5 |
| Max Speed (s.p.m) | 7000 |
| Volume (mm) | 525x360x510 |
| Weight (kg) | 33/41 |
More Information
| Part No | JACKC4503333 |
|---|---|
| Weight (KG) | 69.000000 |
| Manufacturer | Jack |
