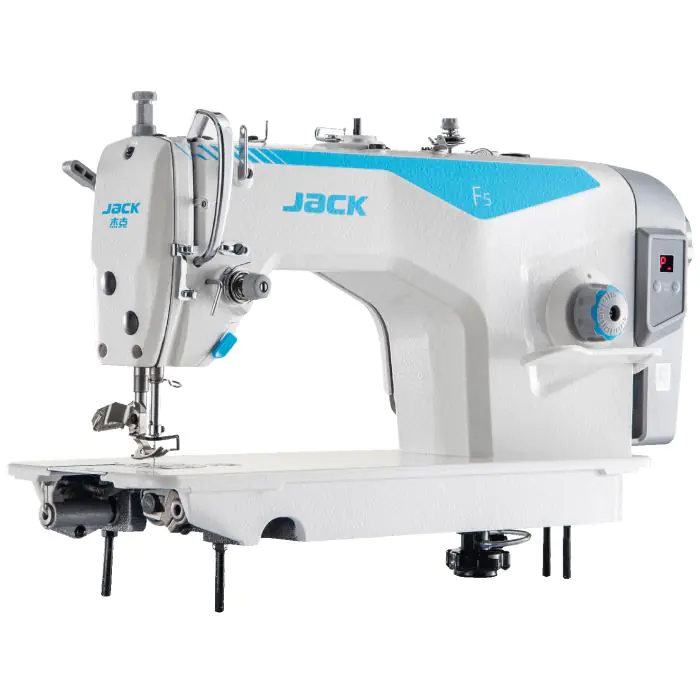

JACK F5-H DIRECT DRIVE NON-TRIM HEAVY-WEIGH LOCKSTITCH MACHINE
Why Buy from Us?
- You are dealing with the official Jack UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements
Description / JACK F5-H DIRECT DRIVE NON-TRIM HEAVY-WEIGH LOCKSTITCH MACHINE
Jack F5-H
- Power Saving, Direct Drive, Heavy-Weight lockstitch Machine.
1-needle lockstitch machine for sewing heavy materials. Equipped with an energy-saving motor mounted in the head (Direct Drive), which guarantees quiet and reliable operation and lower power consumption. JACK Lockstitch F5 is equipped also in simple to use control panel for speed control, needle positioning and quick return to factory settings. Equipped with built-in LED lamp with choice of light intensity level.
Direct Drive Motor
It is an integrated compact solution that does not expose any dangers. Furthermore, silence is guaranteed: no vibration, the motor is mounted on a single shaft.
Low Consumption
Consumption is almost zero thanks to the standby mode. During sewing, consumption is significantly lower than with other machines.
Needle Position
Sets whether to stop the needle at the top or bottom at the end of the seam.
Adjustable Speed
With the + and - keys you can adjust the speed digitally and while you work it is shown in real time.
Thread Cutter
The integrated small knife is useful for manually cutting the thread at the end of the seam.
Integrated Keys
The stitch-to-stitch key is used for precision work. The LED light is integrated into the machine and is adjustable in 3 levels.
Integrated Bobbin Winder
Wind the bobbin while you are working, as soon as it is finished you will have the next one ready.
Voltage Protection
Unstable current? Don't be afraid to damage the machine. The voltage protector will monitor the range of the incoming current.
Light/Heavy
The machine can sew from light to heavy material, adapting to all types of clothing. Also for very heavy work the H model is available.
Technical Specification
| Model | Jack F5-H |
|---|---|
| Needles | DPx5 18-21# |
| Number of threads | 2 |
| Stitch length (mm) | 5 |
| Presser foot lift (mm) | 5-13 |
| Sewing speed: stitches / min | 5000 |
More Information
| Part No | JACKF5H |
|---|---|
| Weight (KG) | 67.000000 |
| Manufacturer | Jack |
