Description / JACK MX-100A-95SSYX-F13 1400 X 950MM PATTERN SEWING MACHINE ROTATING NEEDLE HEAD

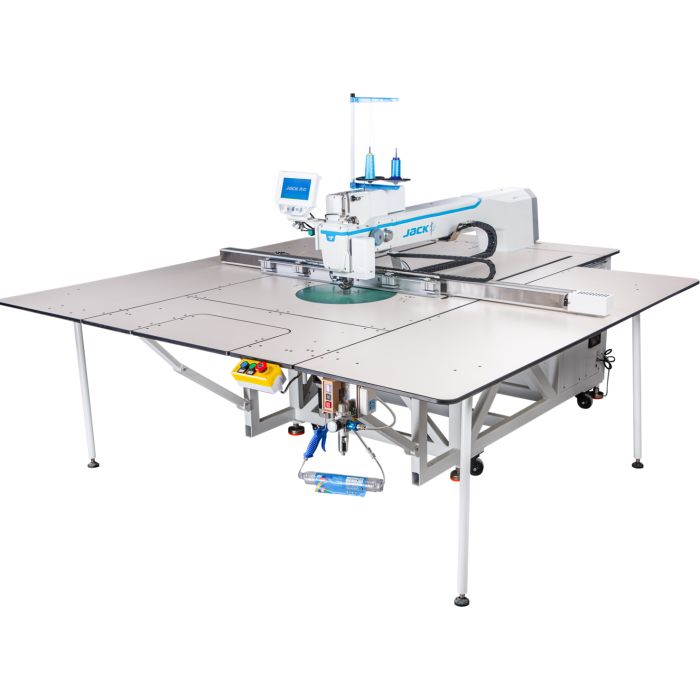

Jack MX-100A-95SSYX-F13
Pattern Field Machine With 360° Rotating Needle Bar - Sewing Area 1400 x 950 mm
Foldable pattern field machine 140x95cm, with 360 degree rotating needle bar for perfect curved seams in all directions. Double screw transmission type. Programmable on the machine or remotely from PC.
360° Rotating Needle Bar
The needle bar and the hook can rotate infinitely in sync, keeping the stitches always in the same direction, always resulting in perfect curves and corners.
Applications
It can be used for light jobs such as down jackets, collars, pockets, shirts but also on Heavy Duty materials such as jackets, leather bags, automotive, home decoration.
Foldable
Sewing area 140x95cm, however, thanks to the folding and sliding side and front tables, it is possible to reduce the overall dimensions in 1 minute and transport it very easily without having to disassemble it.
Touch Display
The quick buttons allow you to quickly activate the most used functions: emergency stop, air cleaning, descent of the template clamps and start of sewing.
On-Board Programming
Thanks to the simple and intuitive interface, it is possible to create programs from the display or via PC software and import them via USB or wifi with IOT.
Electronic Jumping Foot
The smart foot stays down longer, waiting for the needle to rise to prevent the stitches from skipping and breaking. It is also possible to set different heights in different seam sections.
RFID Reader
The radio frequency reads magnetic disks where it is possible to save the sewing design countless times. When you bring the template closer, the reader will automatically change the drawing.
Vibration Reduction
Thanks to the emulation and dynamic balance analysis software, it was possible to increase the absorption of vibrations, now the resonance point of the entire machine is 1400r / min.
Double Screw Transmission
Automatic bobbin change, laser cutting grazing the seam, fine bobbin raising to avoid sewing empty and nib to mark precise points where to attach pockets or other processes are available.
Optionals
Automatic bobbin change, laser cutting grazing the seam, fine bobbin raising to avoid sewing empty and nib to mark precise points where to attach pockets or other processes are available.
Industry 4.0
Edit parameters, view statistics, send sewing designs from App / WebApp directly to the machine in the cloud wherever you are.
Technical Specifications
| Model | Jack MX-100A-95SSYX-F13 (Double Direction Screw drive) |
|---|---|
| Application | Plate Sewing |
| Needle | DPx5 DPx17 |
| Sewing area (mm) | 1400x950 |
| Number of Needles | 1 |
| Number of Threads | 2 |
| IoT Function | As Standard |
| Bottom Thread Detection (-F13) | As Standard |
| Middle Presser Foot Walking Distance (mm) | 15 |
| Needle Gauge (mm) | 1 - 12.7 |
| Max Speed (S.p.m) | 2800 |
| Volume (mm) | 2350x1340x1535 |
| Weight (kg) | 742/845 |
